ProDIgY

  A suite of boards for Raspberry PI & ESP32 dedicated to all makers and are intended to be a good start point for every new project.


No more needs for cables, breadboard, power adapters, You got all of them in a single board.


Specifically developed based on the needs of technicians while developing a new kind of project where any integration and/or modification must be 'READY TO USE' in less than one second.


All components are standard THT (Through the Hole), so it is no difficult to place and soldering them on the PCB, all ICs provided with socket for a simple replacement in case of faulty component.


All inputs are galvanic insulated with a different and/or indipendent source power.


All models provide board connections to:

- auxiliary power pins (from 3.3Vdc to 5Vdc, some models up to 12Vdc)  and to I2C bus (3.3 and 5.0 Vdc);

- slot for RTC DS3231 for Raspberry;
- slot for APDS9960;
- slot for BME280;




  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

We believe in you! Ask us for any information and do not hesitate to propose new ideas and improvements, as well as specific needs.
We would be proud to be able to meet your needs!

What a pure Maker can do, anything and everything

Maker will never stop facing any problem, just to pursuite his goal.
ProDIgY boards
  • All boards are in 'kit version'

    ...so with a Low/medium difficulty, Makers can mount their own circuit in total independence, by placing and soldering the components on the board.



  • All Components are PMD standard (or THT or TTH)

    ...allowing a simple replacement if necessary without any problem of finding the component on the market.



  • Only mount components as your needs

    ....since all boards are equipped with various interconnection methods (I2C 3v3V/5V, TTL serial and so on) Makers have the opportunity to install the only components needed for the 'running project' avoiding spending time and money for components never used in the future, on the other hand in an 'experimental' environement the complete board with all components installed will give a powerful tool for any kind of project Makers can afford.

  • Suitable for Gewiss GW44 Series enclosures

    Most important where and how to fit your final board in a secure place, well fixed and protected  from dust and environmental agents.

    World's electric leader Gewiss has GW44 Series, a complete production of enclosure boxes and theirs accessories.

    We believe in Gewiss quality and these boxes are the best to protect ProDIgY boards, so we decided to design our boards to fit perfectly in them.

 Prodigy for RPi

 Dedicated to all versions of the most famous micro-computer, Raspberry Pi, from Raspberry Foundation.
Discover

Prodigy for ESP-32

 Dedicated to the most famous 100% Arduino compatible micro-controller ESP-32, from Expressif.
Discover

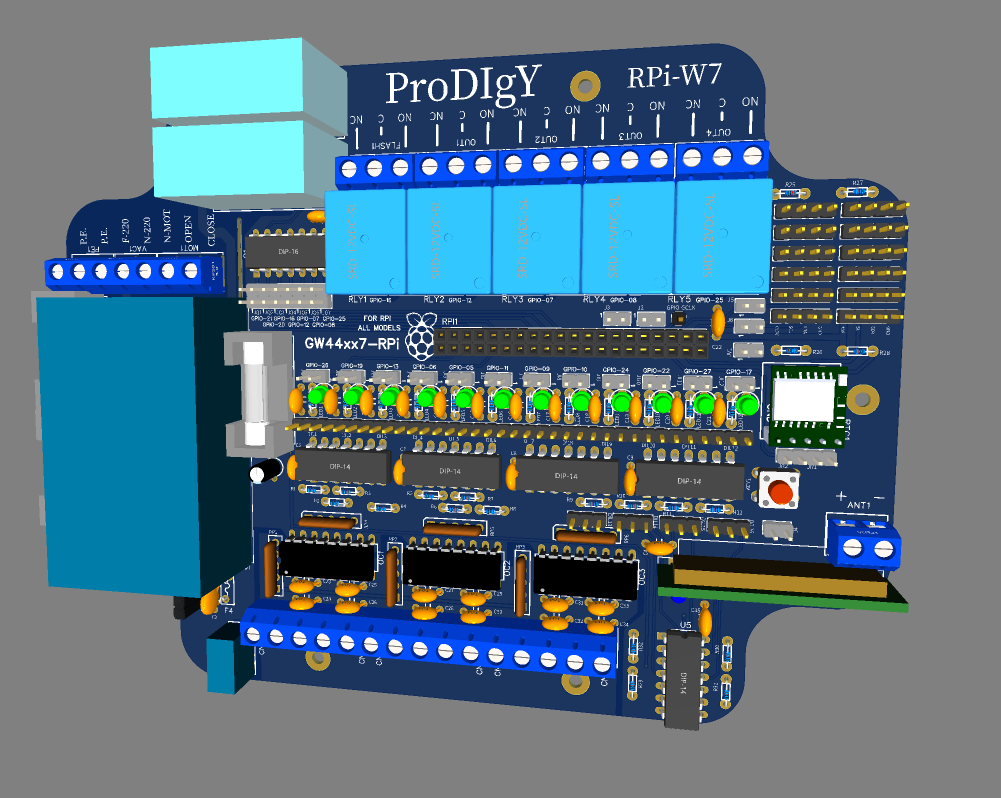

ProDIgY

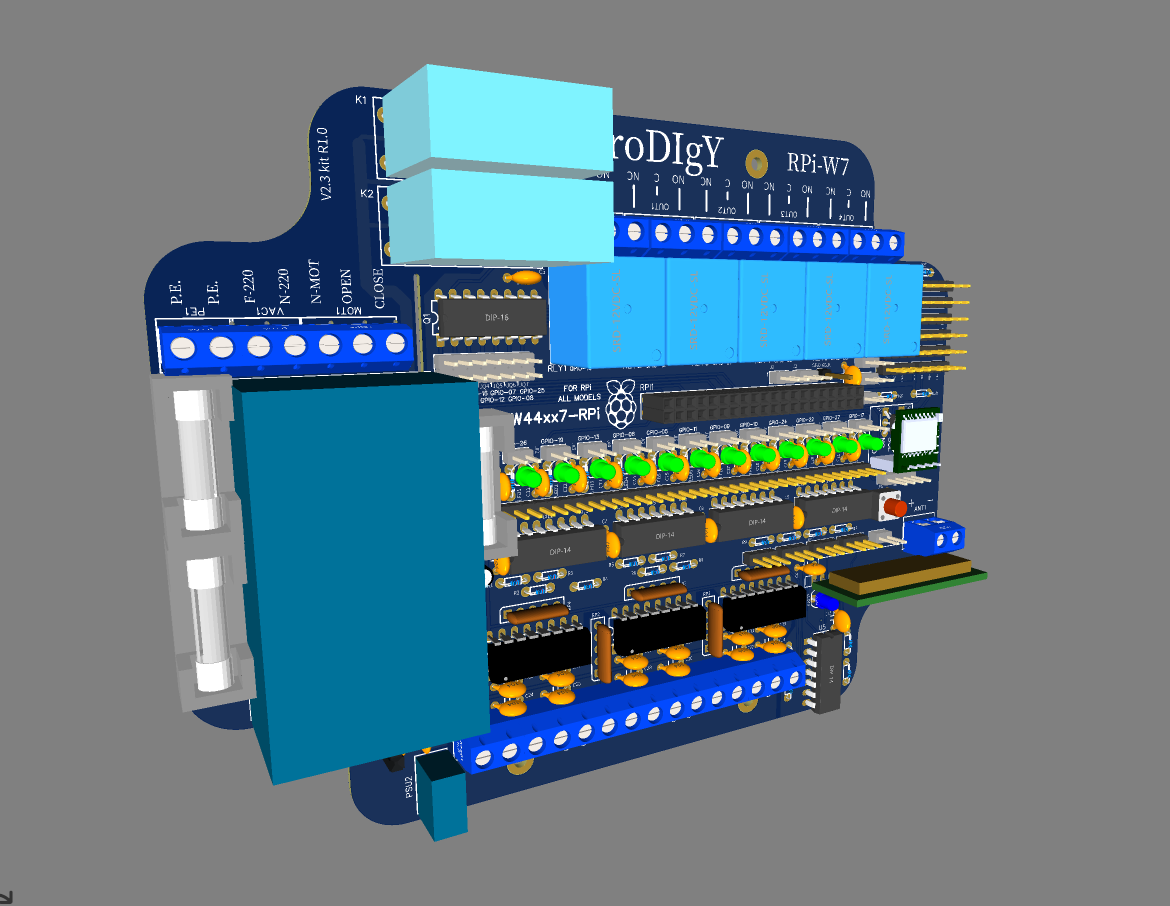

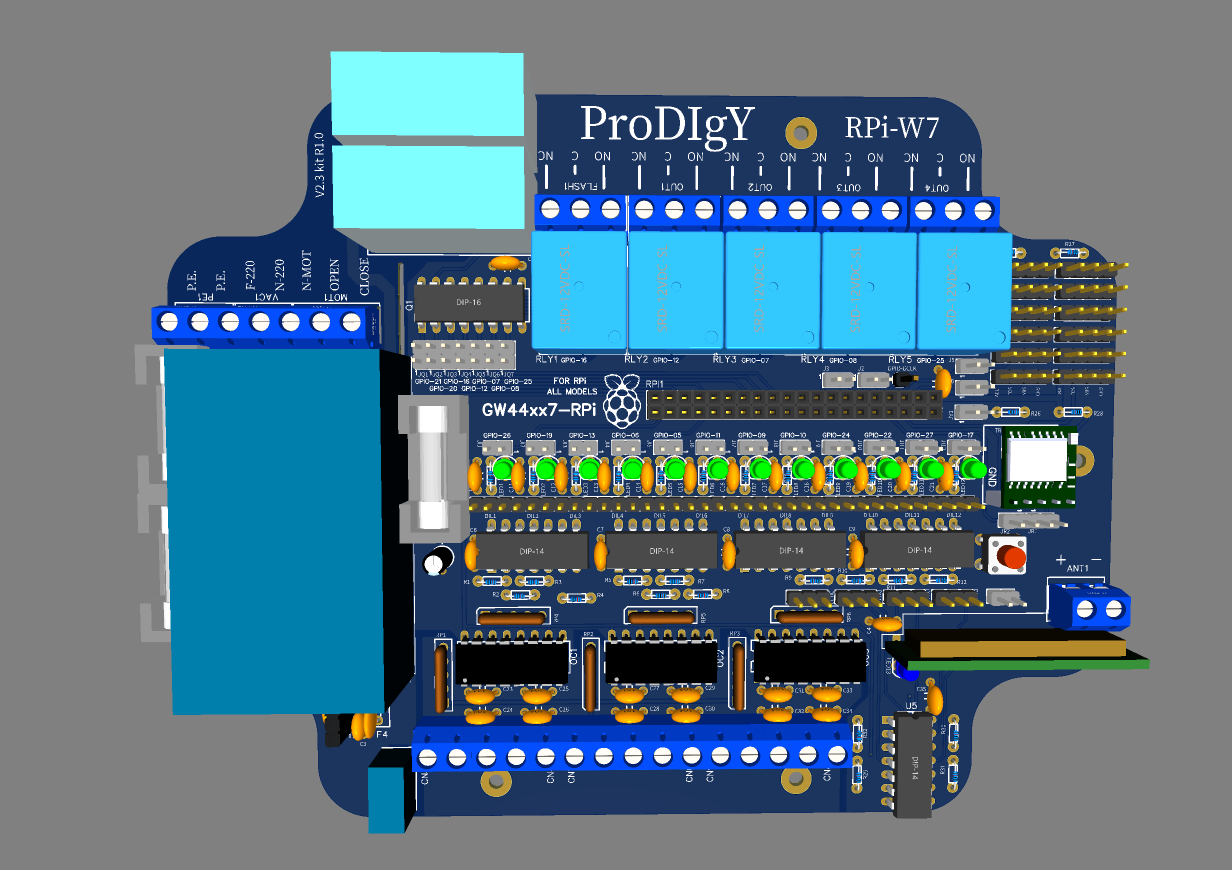

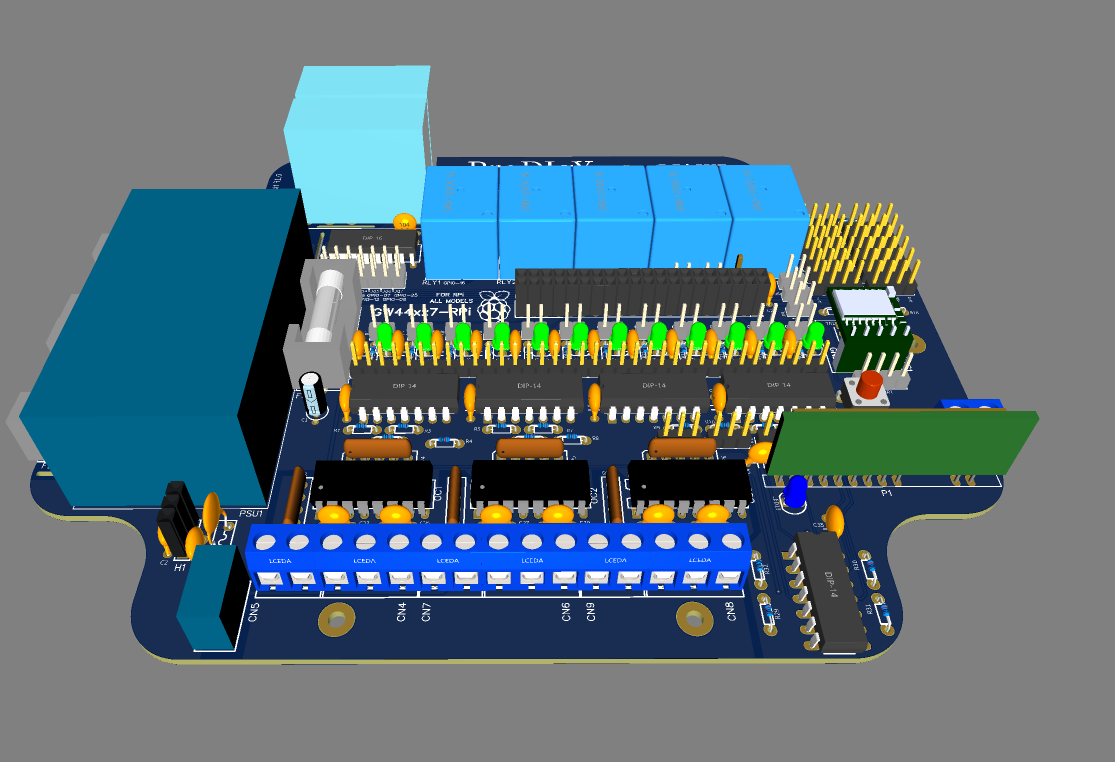

Rpi-W7

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 5Vdc 4A (Fused 3AF);
  • Inputs Power Supply Galvanic Isolated: 5Vdc/200mA (Self Restoring Fuse 0.2A);
  • Digital Inputs: 12 DigInp (Common Ground Signal) Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper and with LED status, GPIO connection to Input Channels by DIP Jumpers;
  • Digital Outputs: 7 DigOut MOSFET ULN2004 driven for 5x Relays SRD-5Vdc, 2x RelaysFinder 44 Series 5Vdc for Motor Out (Fused 6AF max), GPIO connection on Output Channels by DIP Jumpers;
  • I2C bus: from default pins on 6x 4Pins (3V3, SCL, SDA, GND);
  • I2C bus: from default pins via two DIP Jumpers: (or as Your choiche removing DIP caps) with bus voltage selection between +5V and +3V3 via DIP jumper on 6x 4Pins (Vsel, SCL, SDA, GND);
  • RTC DS3231 for RPi: connected via two DIP Jumpers on I2C bus @3V3;
  • Dimensions (cm): 19x14x7;
  • Suitable Box: Gewiss GW44xx7;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

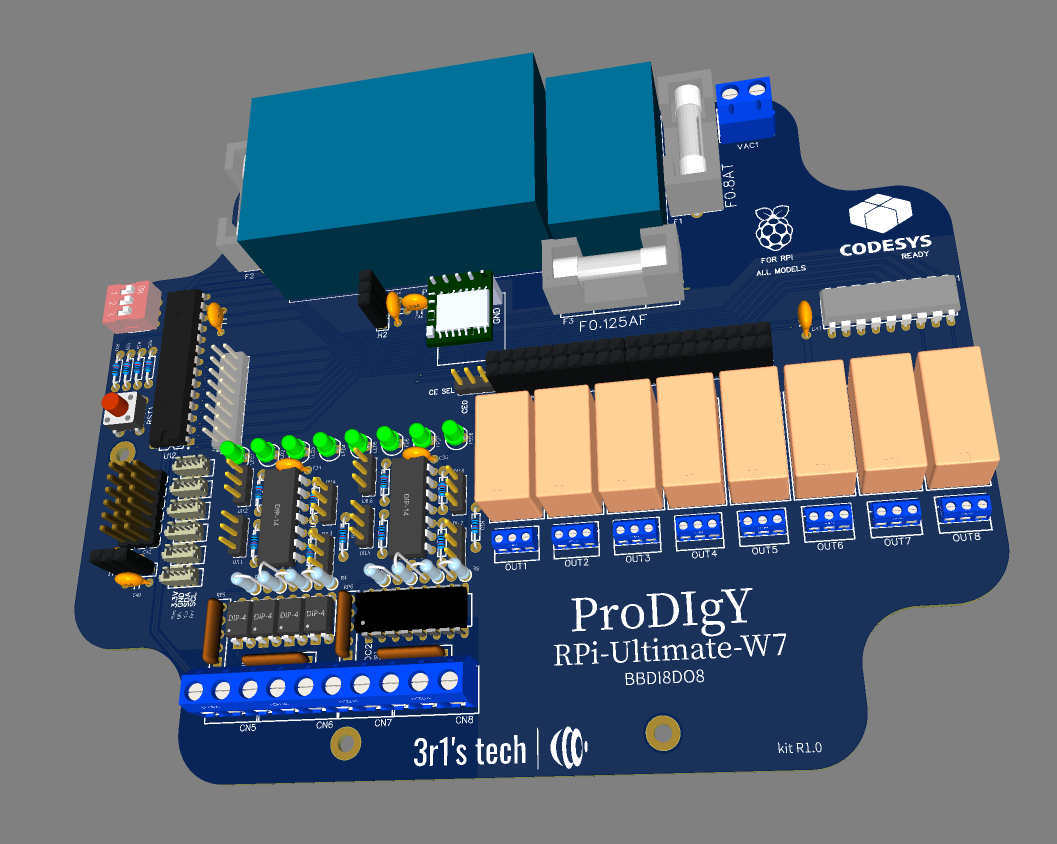

ProDIgY

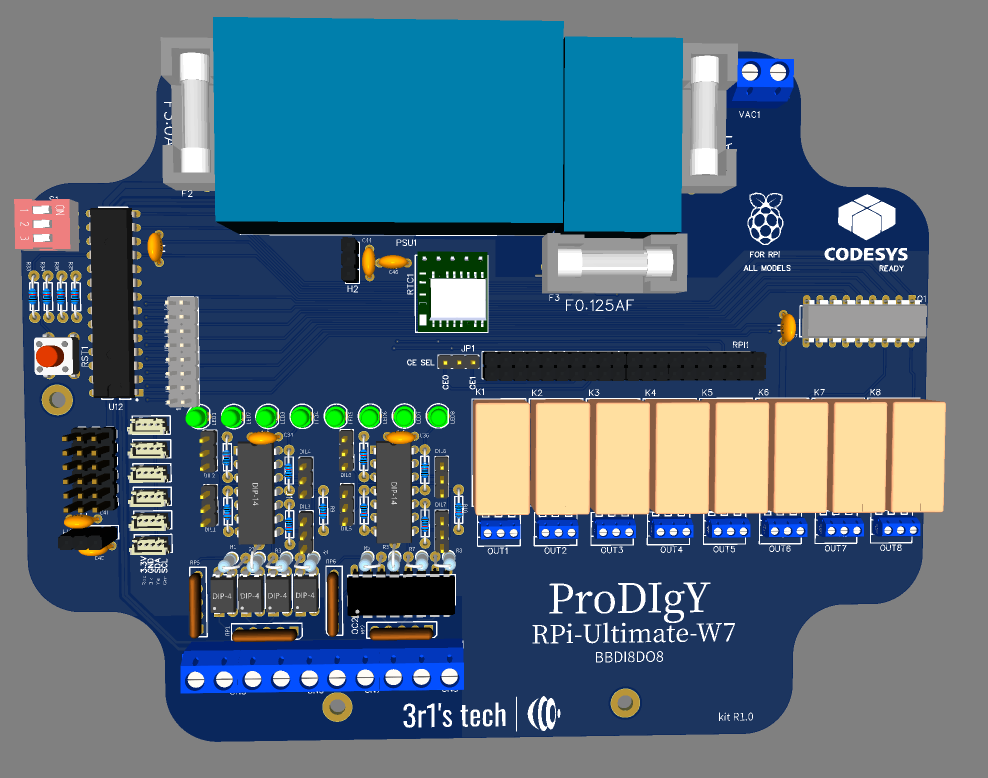

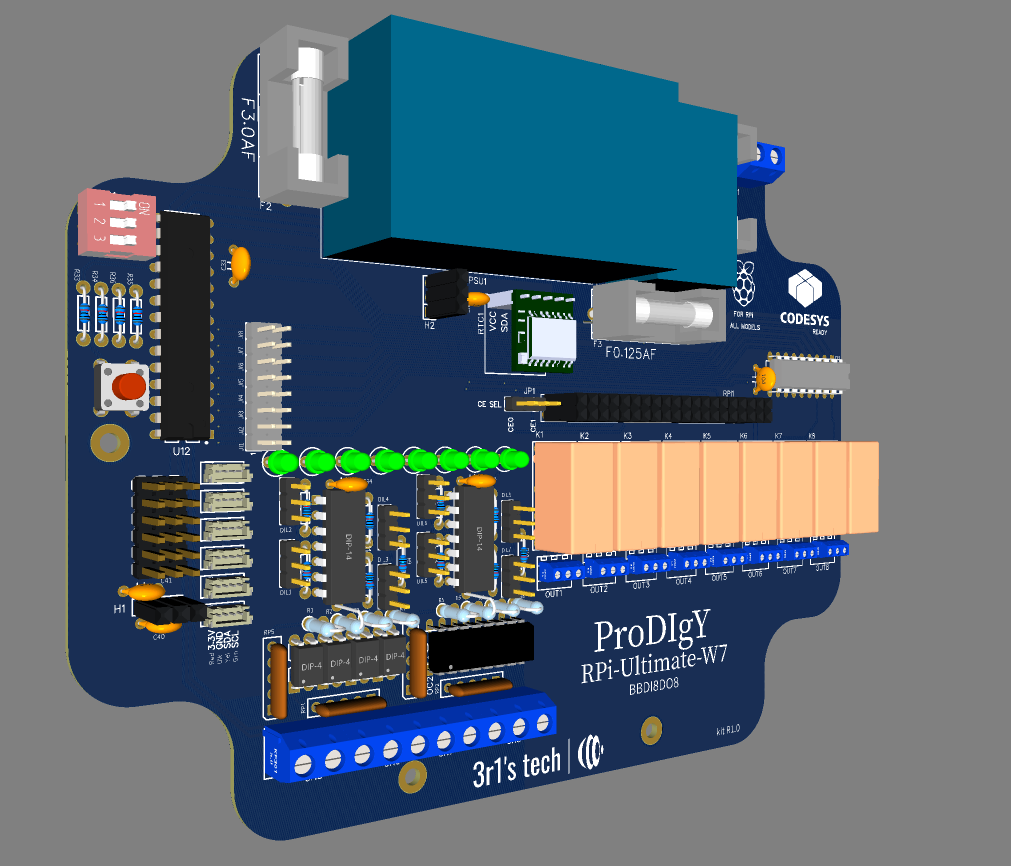

RPi-Ultimate-W7
(Base Board)

Code: BBDI8DO8 (Universal for all Top Board)

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 5Vdc 4A (Fused 3AF);
  • Inputs Power Supply Galvanic Isolated: 5Vdc/200mA (Fuse 0.2A);
  • Digital Inputs: 8 DigInp on MCP23S17 SPI (Common Ground Signal) Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper and with LED status, GPIO connection to Input Channels by DIP Jumpers;
  • Digital Outputs: 8 DigOut  on MCP23S17 SPI (MOSFET ULN2004 driven for 5x Relays HK19F-5Vdc, GPIO connection on Output Channels by DIP Jumpers;
  • I2C bus: 6x JST 1.27mm 4Poles (3V3, SCL, SDA, GND);
  • RTC DS3231 for RPi: connected via two DIP Jumpers on I2C bus @3V3;
  • Auxiliary Voltages Pins: 6x 3V3, 6x 5V, 6x GND;
  • Dimensions (cm): 19x14x7;
  • Suitable Box: Gewiss GW44xx7;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

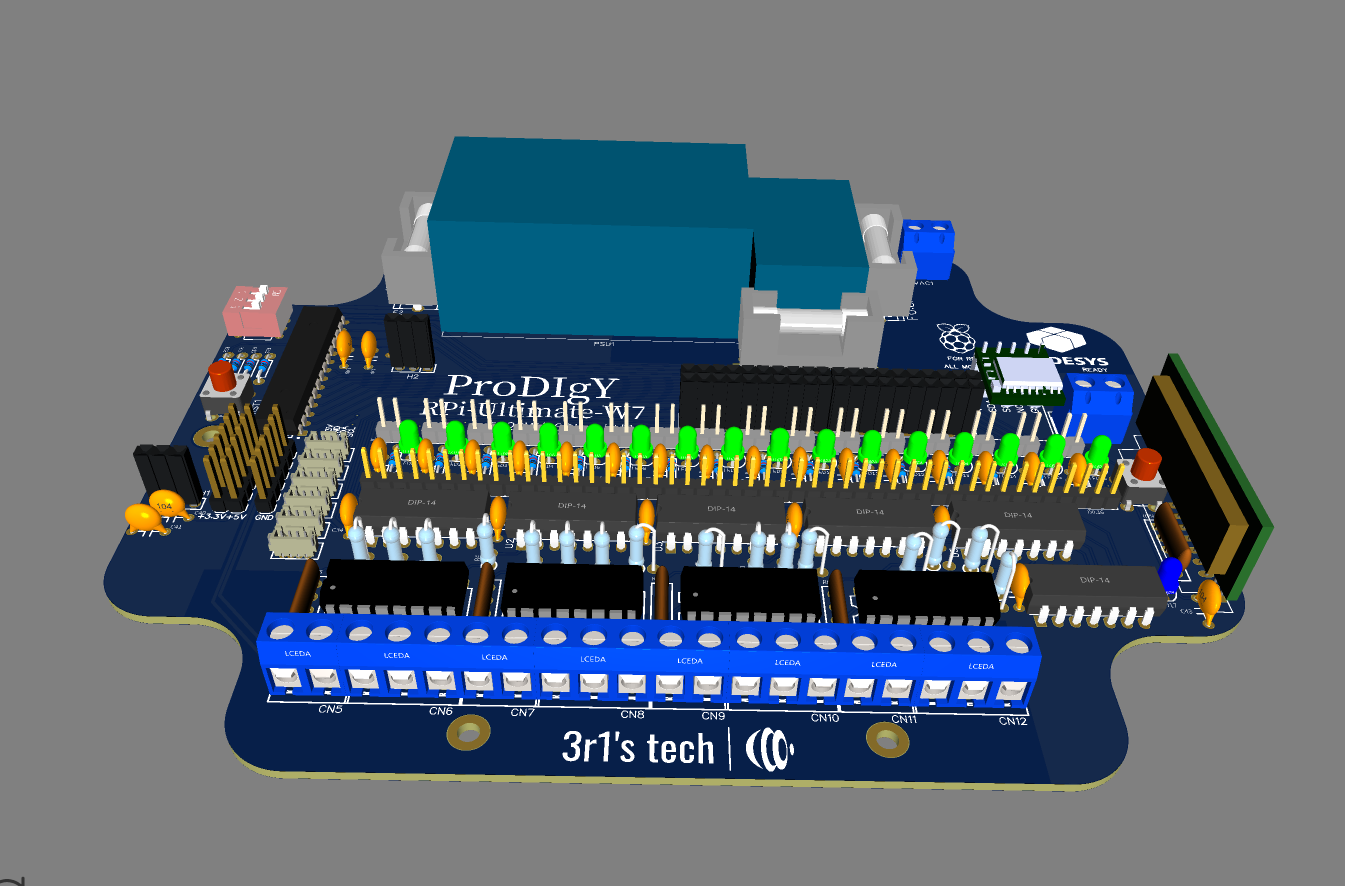

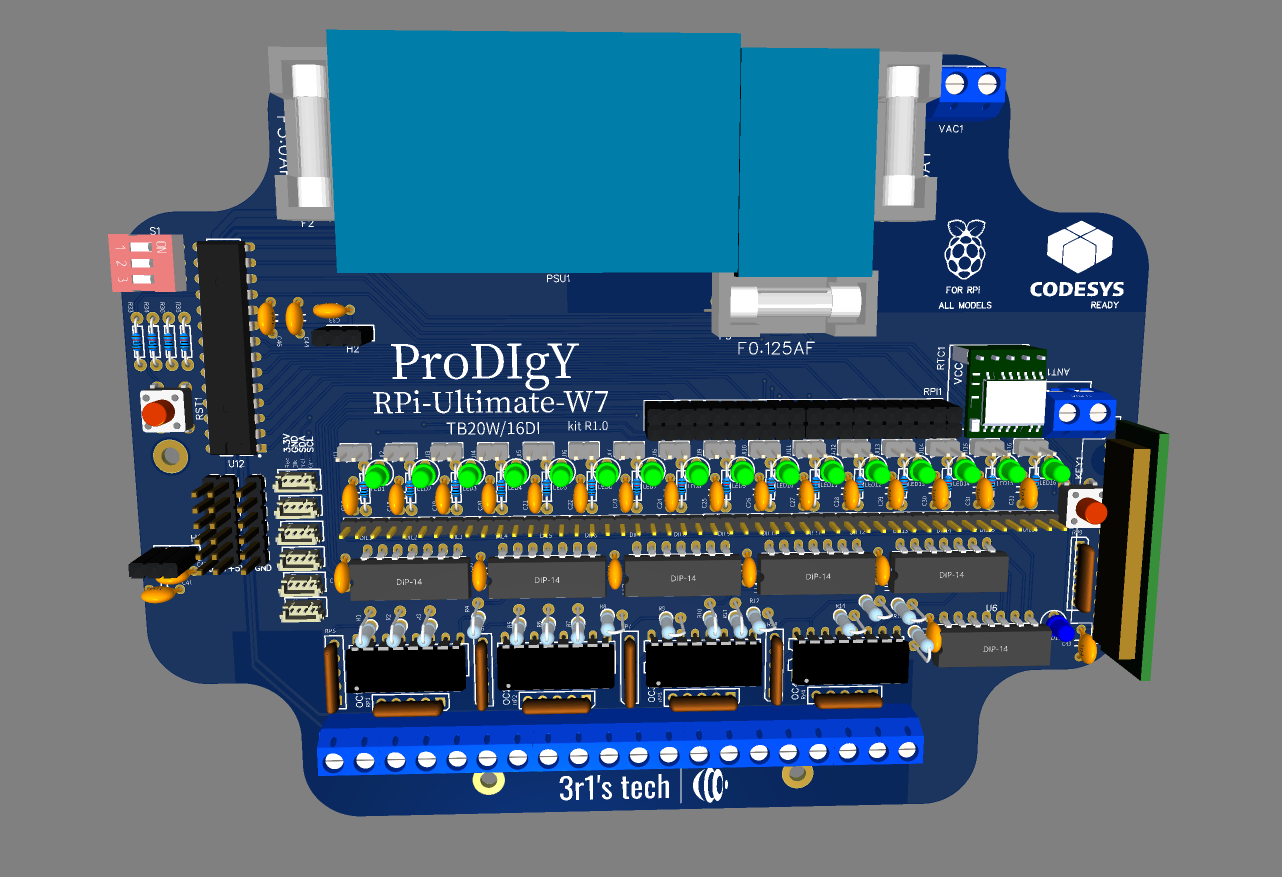

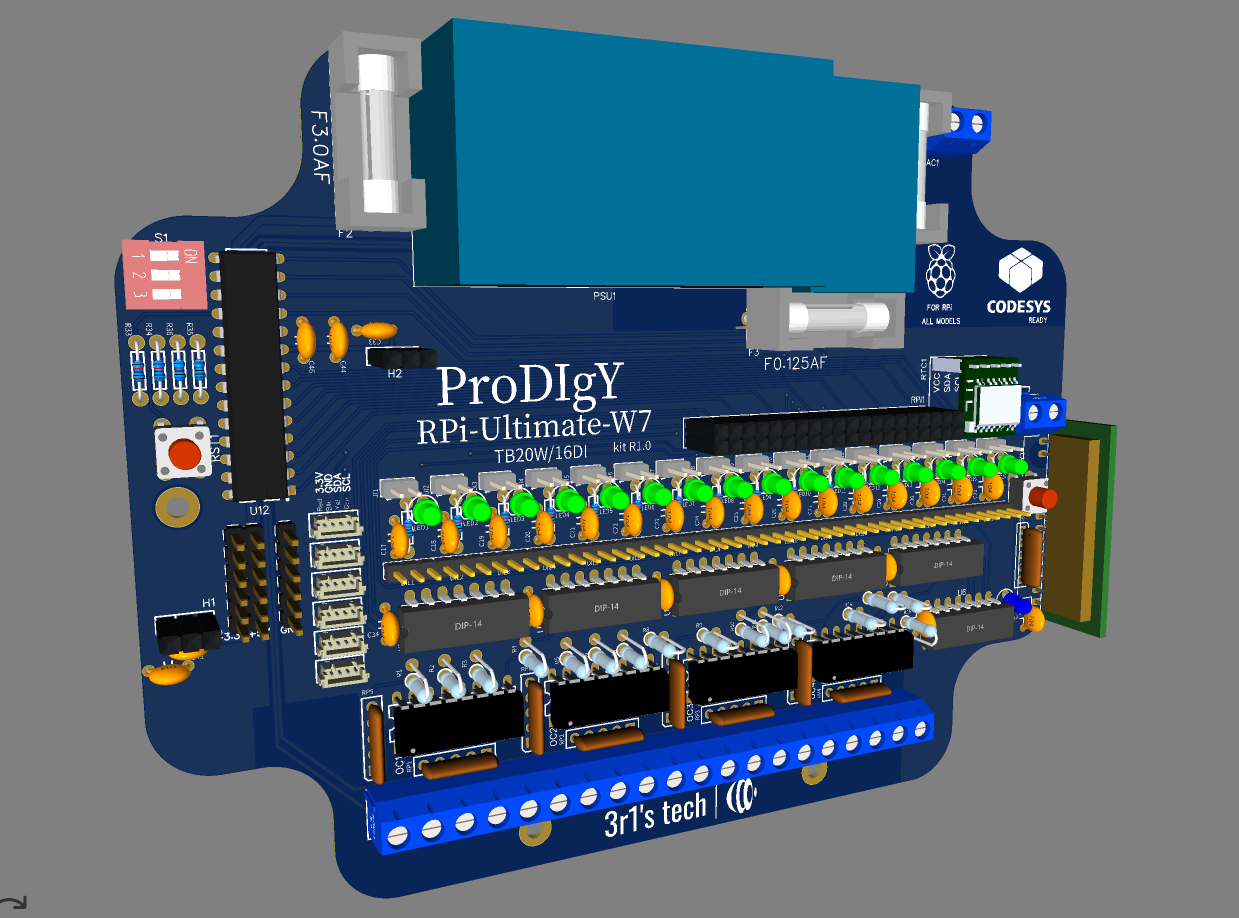

ProDIgY

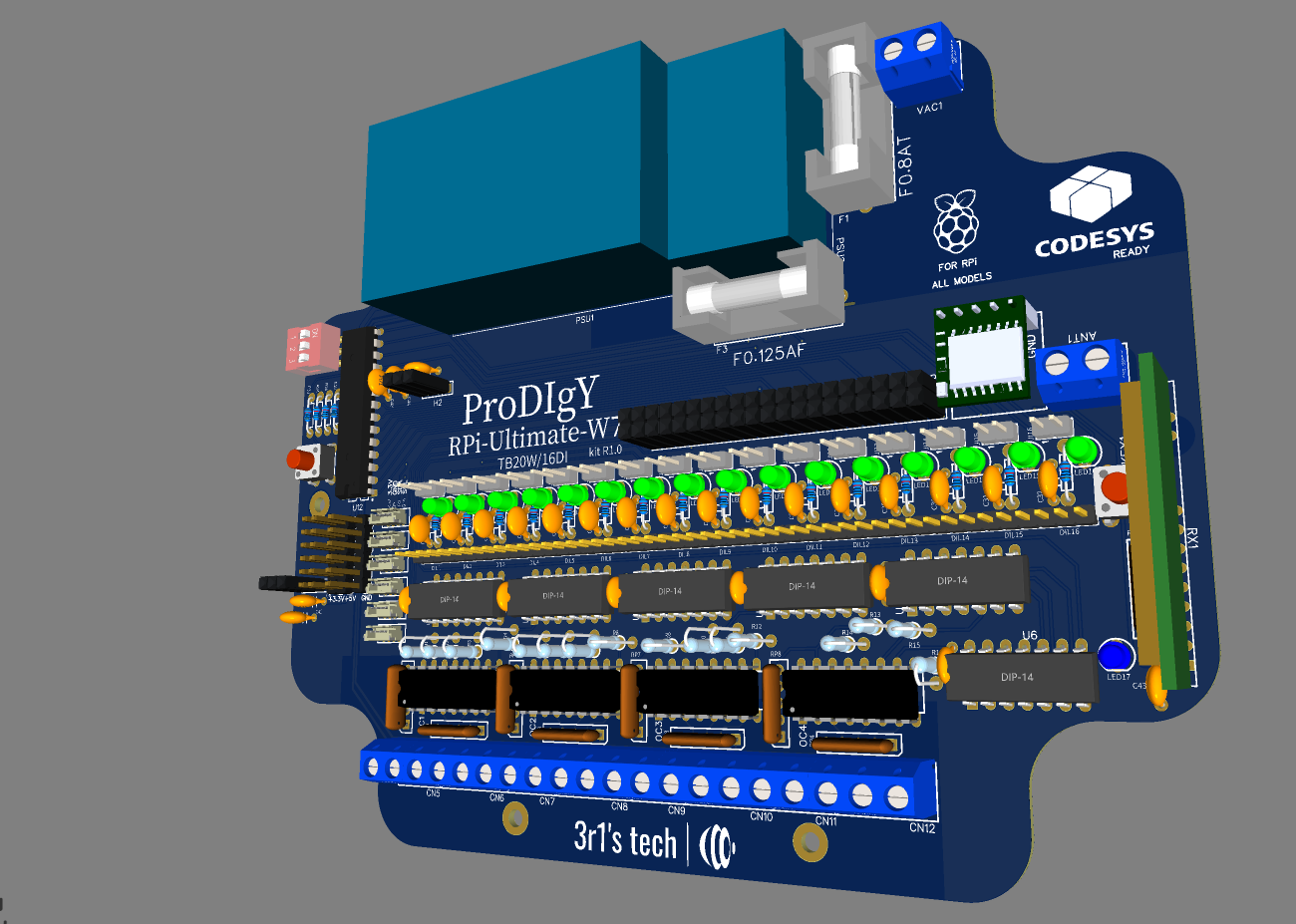

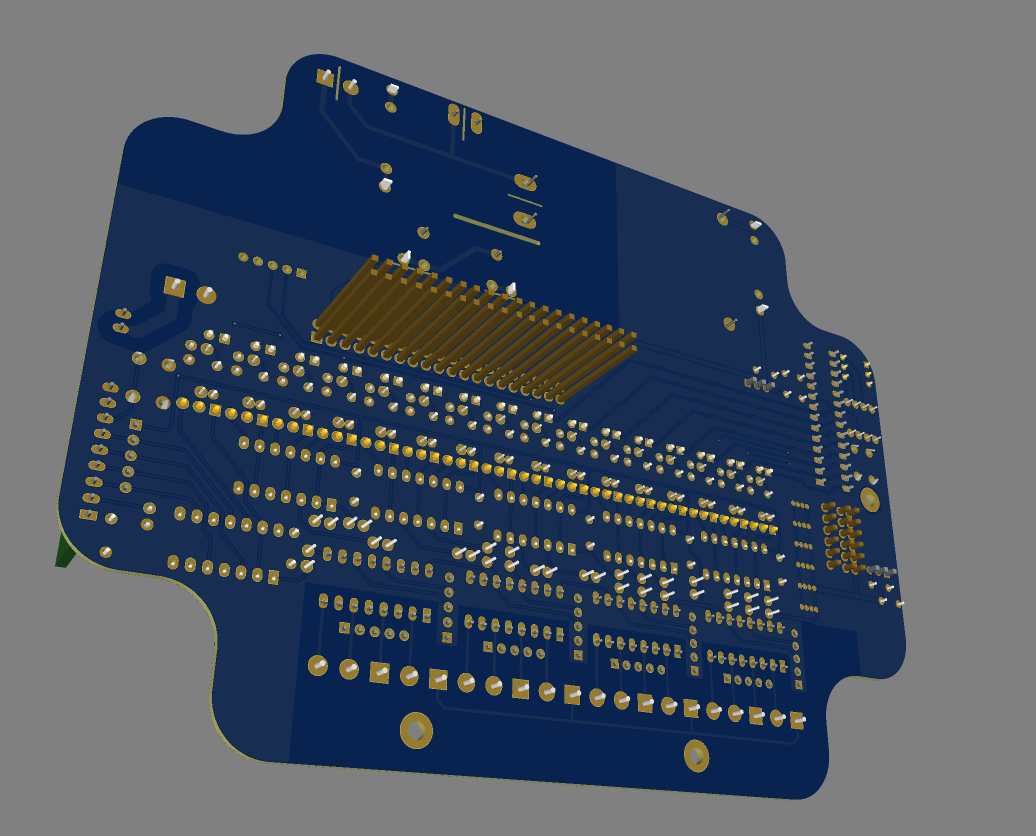

RPi-Ultimate-W7TB
(Top Board)

Code: W7TB (Completion for W7BB)

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 5Vdc 4A (Fused 3AF);
  • Inputs Power Supply Galvanic Isolated: 5Vdc/200mA (Self Restoring Fuse 0.2A);
  • Digital Inputs: 16 DigInp on MCP23S17 SPI (Common Ground Signal) Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper and with LED status, GPIO connection to Input Channels by DIP Jumpers;
  • I2C bus: 6x JST 1.27mm 4Poles (3V3, SCL, SDA, GND);
  • RTC DS3231 for RPi: connected via two DIP Jumpers on I2C bus @3V3;
  • Radio Receiver: up to 6-channels radio receiver from Aurel;
  • Auxiliary Voltages Pins: 6x 3V3, 6x 5V, 6x GND;
  • Dimensions (cm): 19x14x7;
  • Suitable Box: Gewiss GW44xx7;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

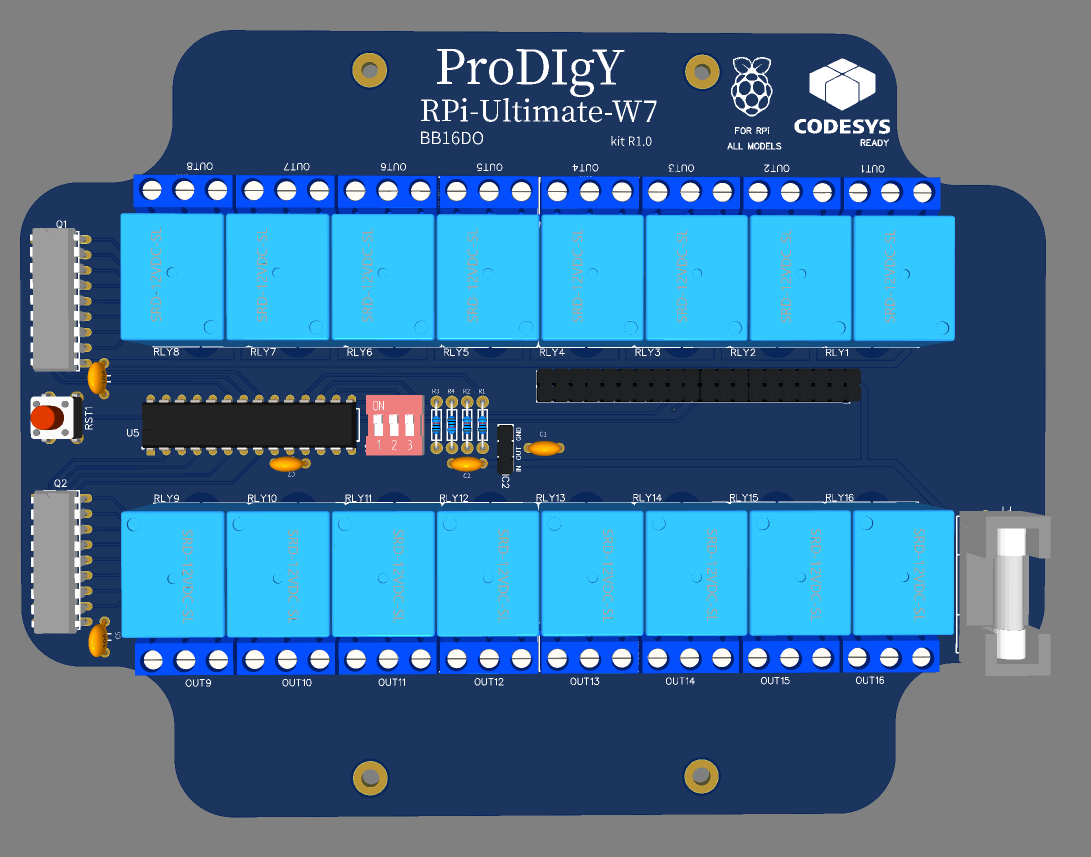

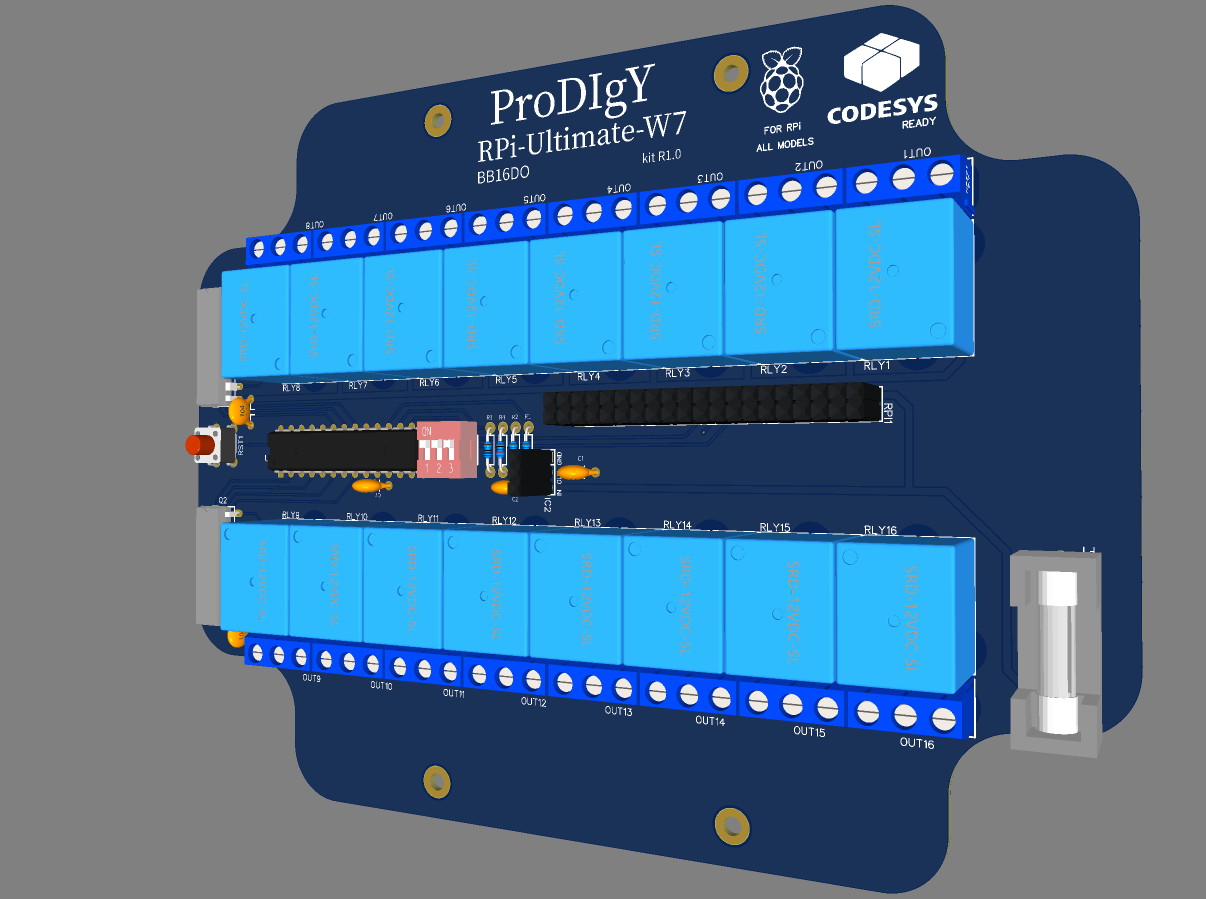

ProDIgY

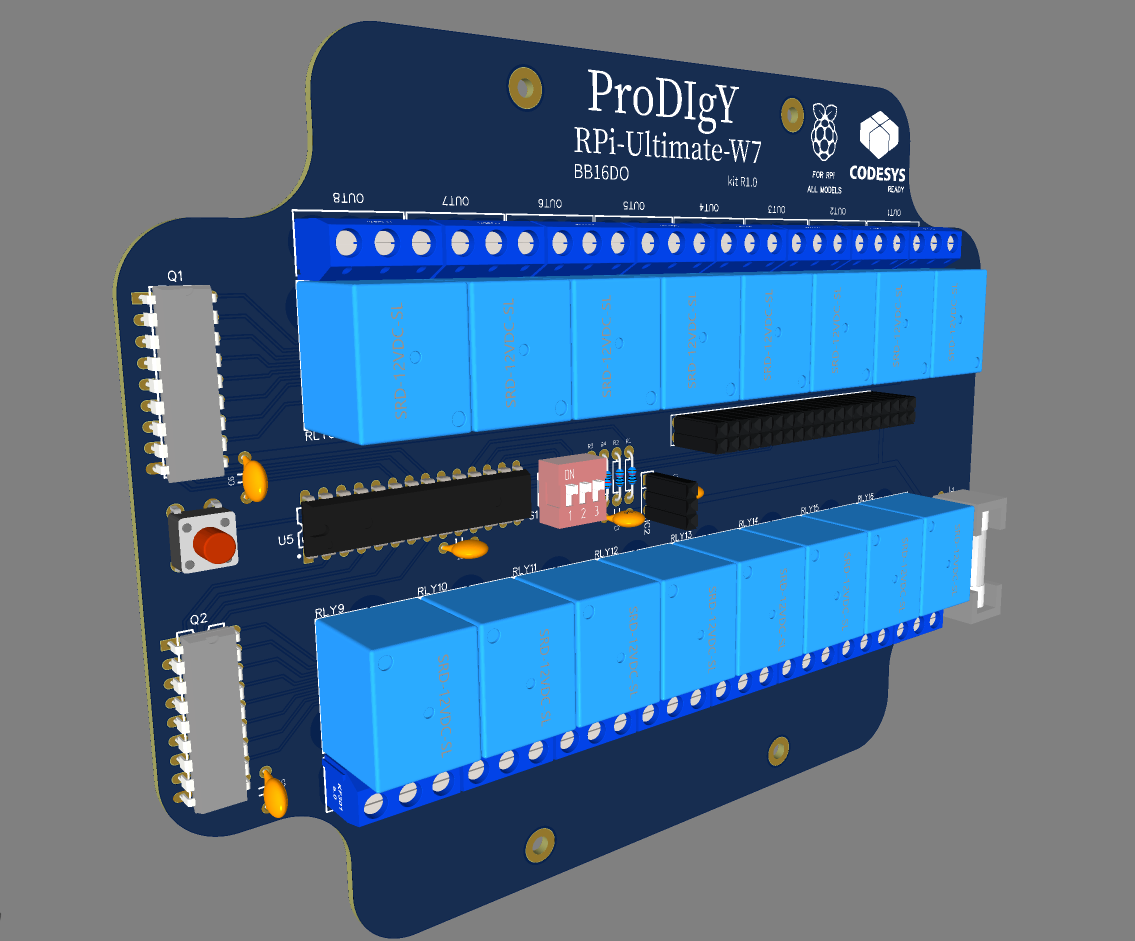

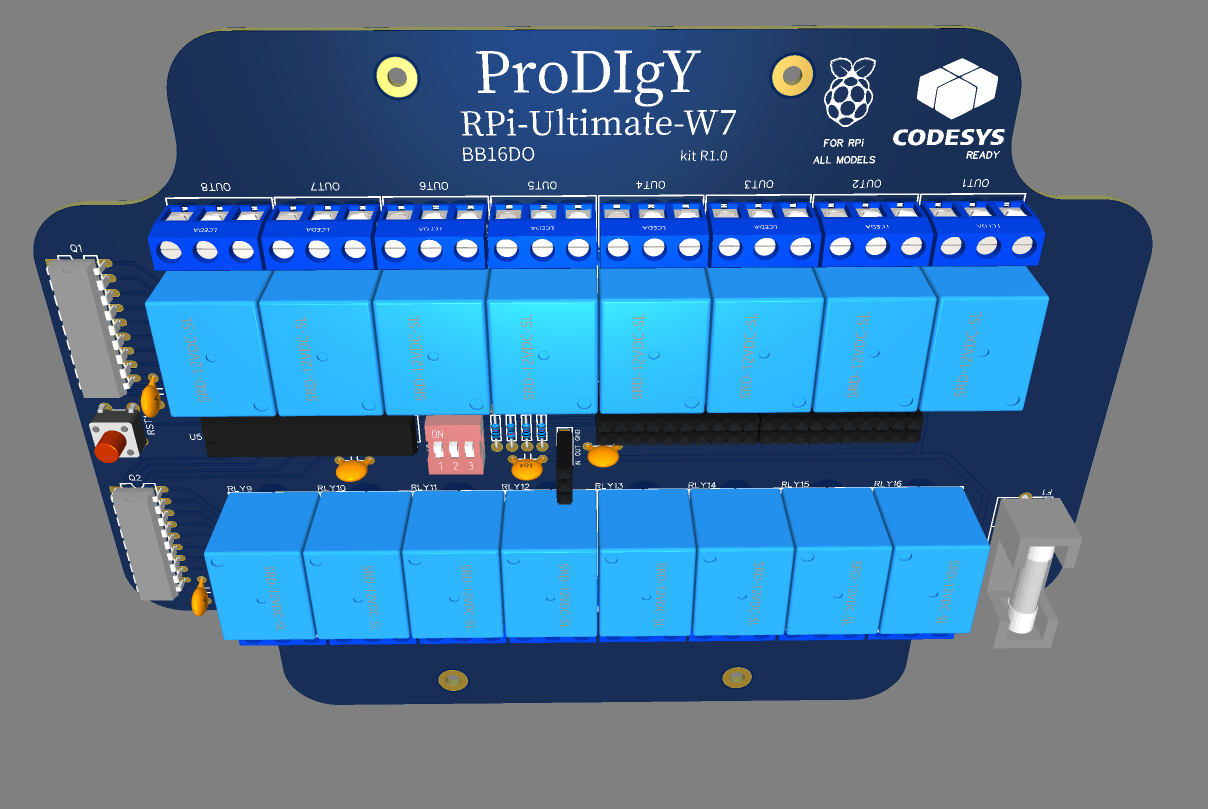

RPi-Ultimate-W7BB
(Base Board)

Code: W7TB (Completion for W7TB)

  • Main Power Supply: In 5Vdc 4A (Fused 1AF) from Top Board;
  • Digital Outputs: 16 DigOut on MCP23S17 SPI driven by 2x MOSFET ULN2803 for 16x Relays SRD-5Vdc;
  • Dimensions (cm): 19x14x7;
  • Suitable Box: Gewiss GW44007;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

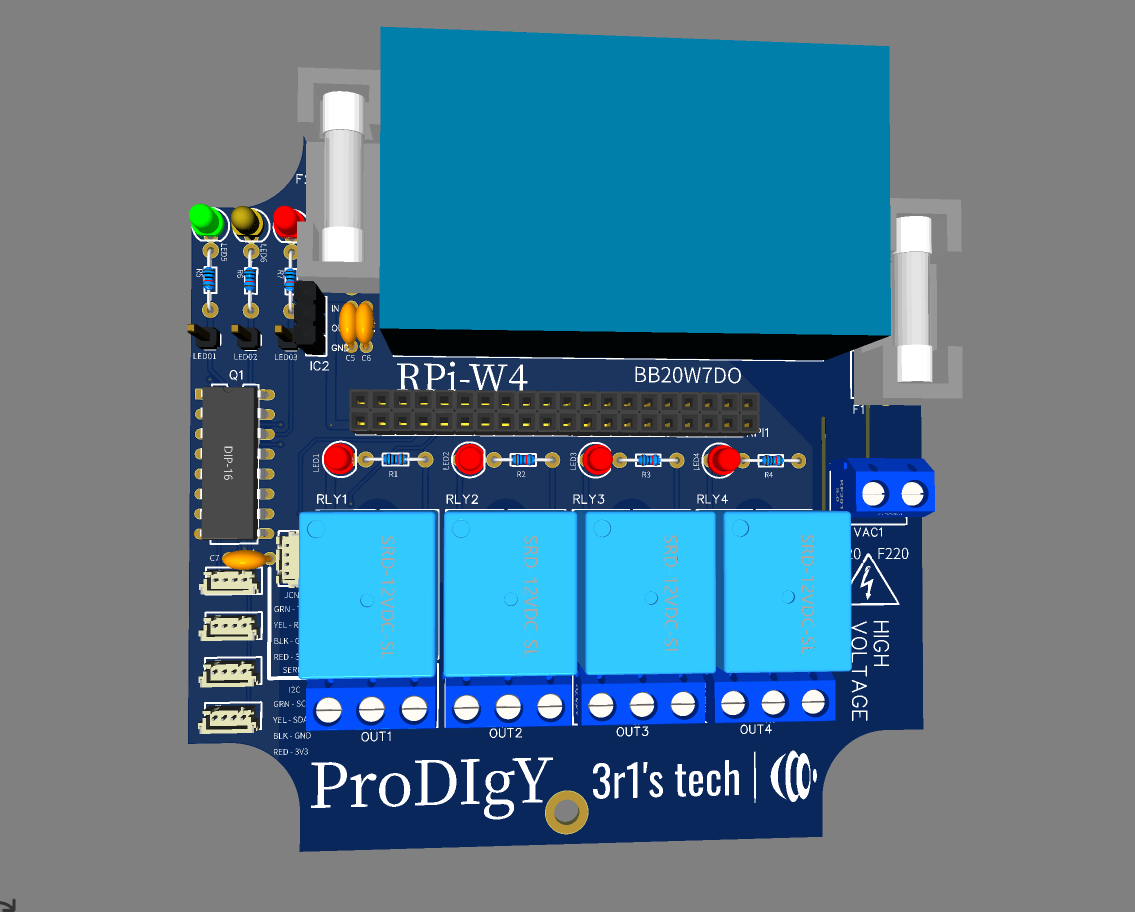

ProDIgY

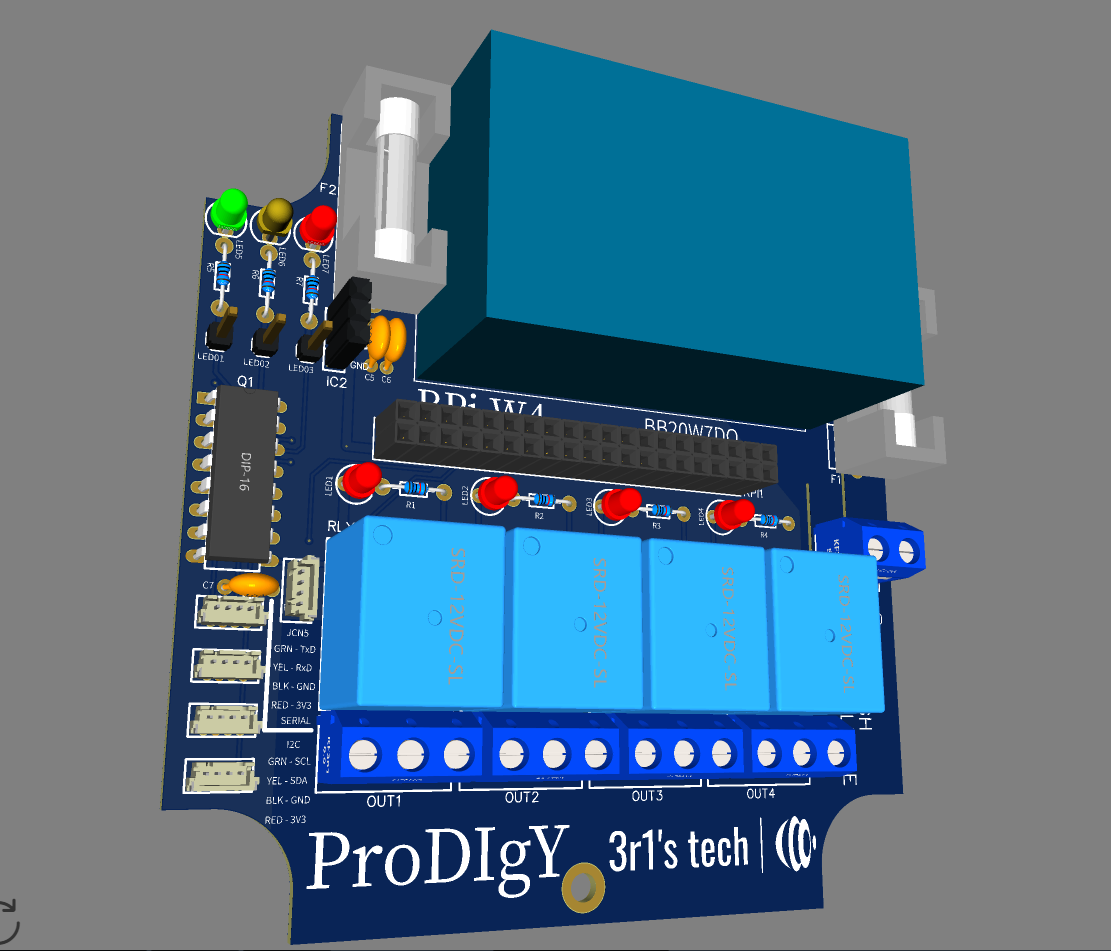

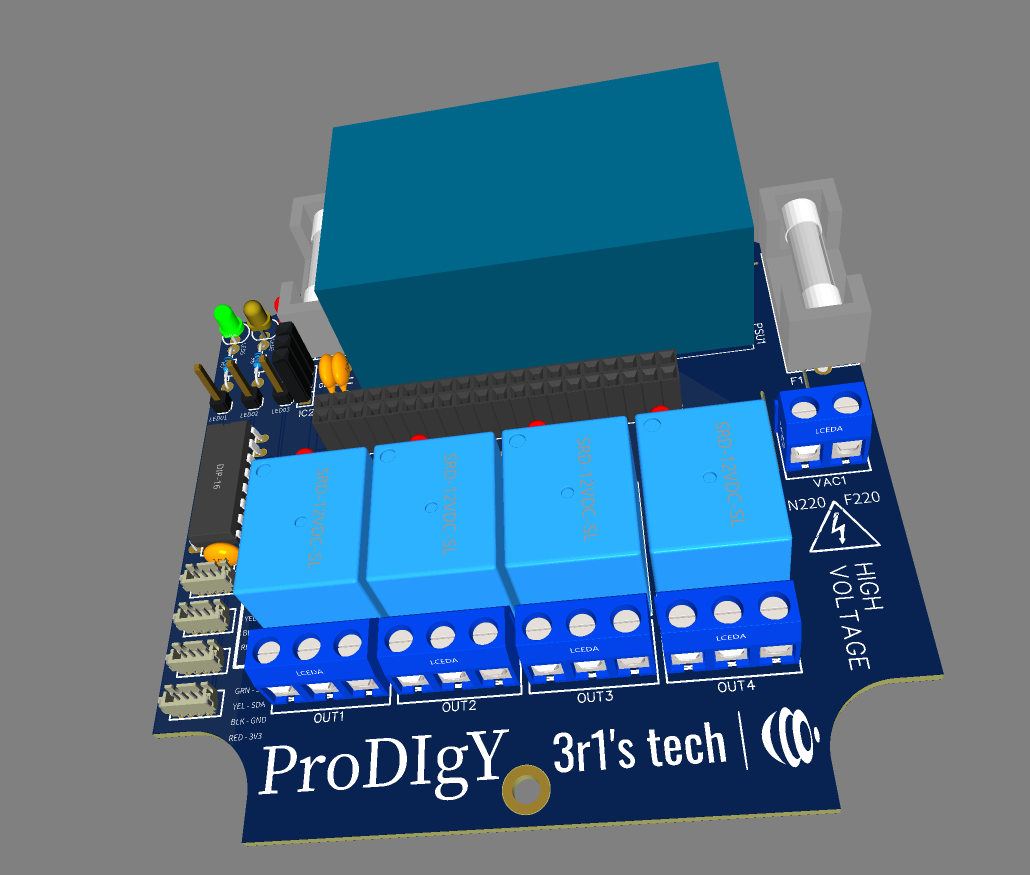

RPi-W4BB
(Base Board)

Code: W4BB (Completion for W4TB)

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 5Vdc 4A (Fused 3AF);
  • Digital Outputs: 7 DigOut on driven by MOSFET ULN2004 for 4x Relays SRD-5Vdc, 3x LED (Red, Yellow, Green);
  • I2C Bus: 4x JST 1.27 4Poles (3V3, GPIO 03 - SCL,  GPIO 02 - SDA, GND);
  • Dimensions (cm): 10x10x5;
  • Suitable Box: Gewiss GW44xx4;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

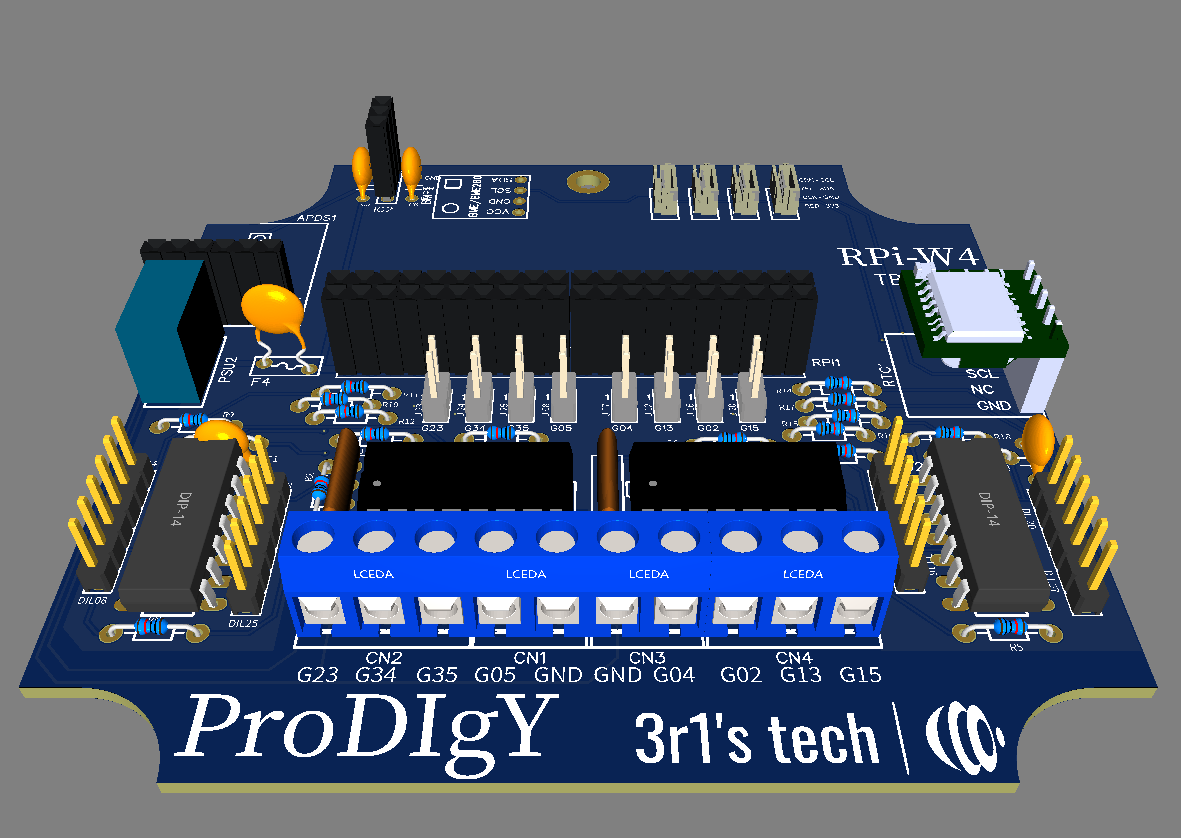

ProDIgY

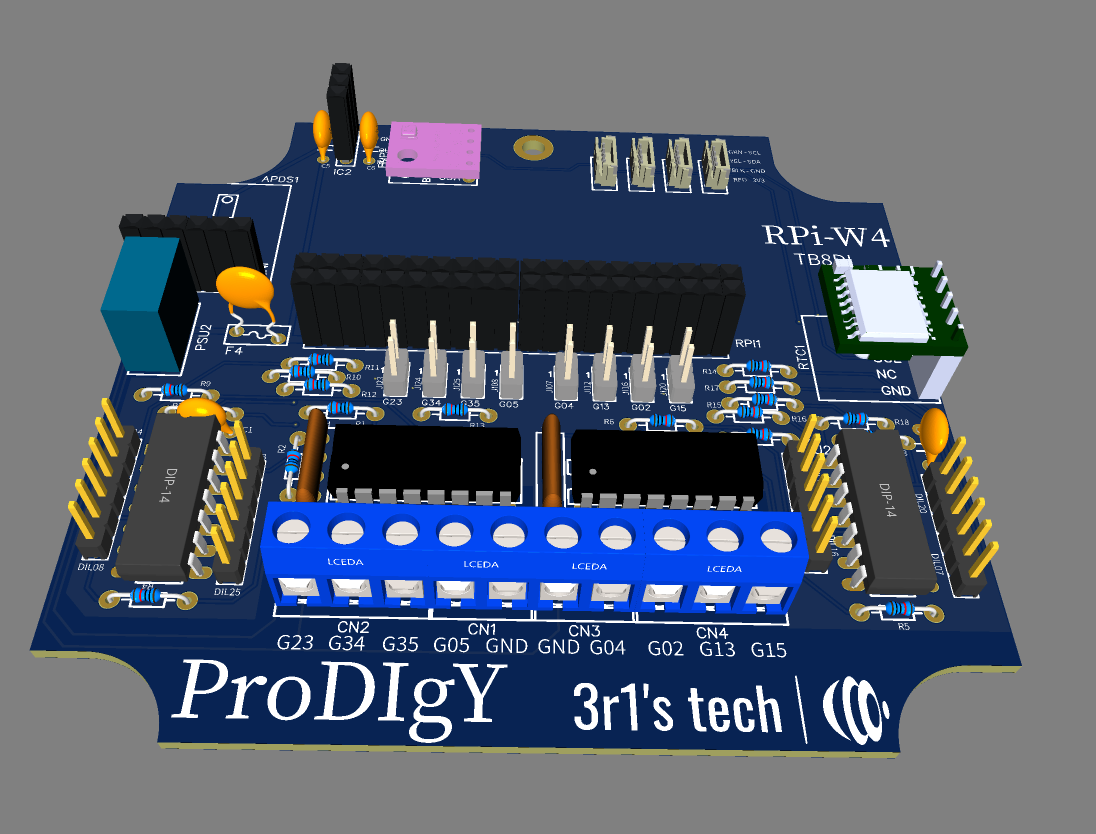

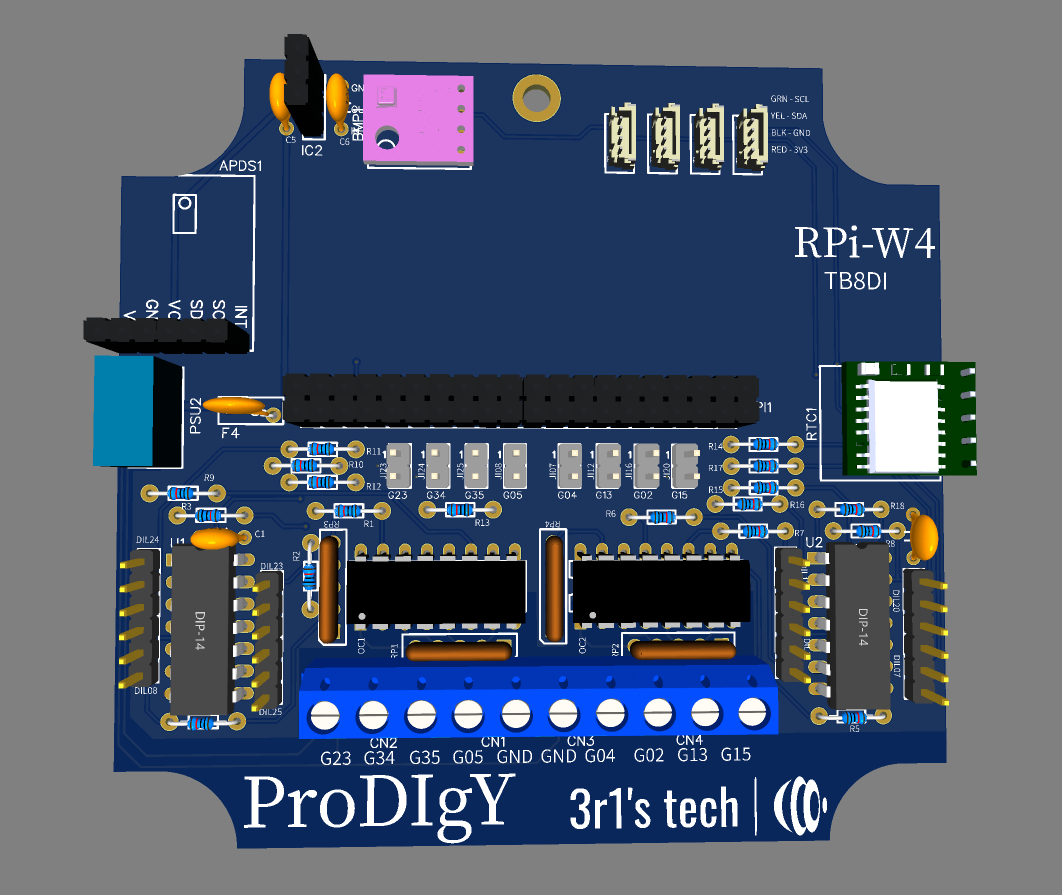

RPi-W4TB
(Top Board)

code: W4TB (Completion for W4BB)

  • Main Power Supply: In 5Vdc from Base Board;
  • Inputs Power Supply Galvanic Isolated: 5Vdc/200mA (Self Restoring Fuse 0.2A);
  • Digital Inputs: 8 DigInp (Common Ground Signal) Galvanic Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper, GPIO connection to Input Channels by DIP Jumpers;
  • I2C Bus: 4x JST 1.27 4Poles (3V3, GPIO 03 - SCL, GPIO 02 - SDA, GND);
  • 1x Slot for DS3231 for RPi RTC (Real Time Clock);
  • 1x Slot APDS.9960 Light/Gesture Sensor;
  • 1x Slot BME280 Temperature/Humidity/Pressure Sensor;
  • Dimensions (cm): 10x10x5;
  • Suitable Box: Gewiss GW44xx4;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

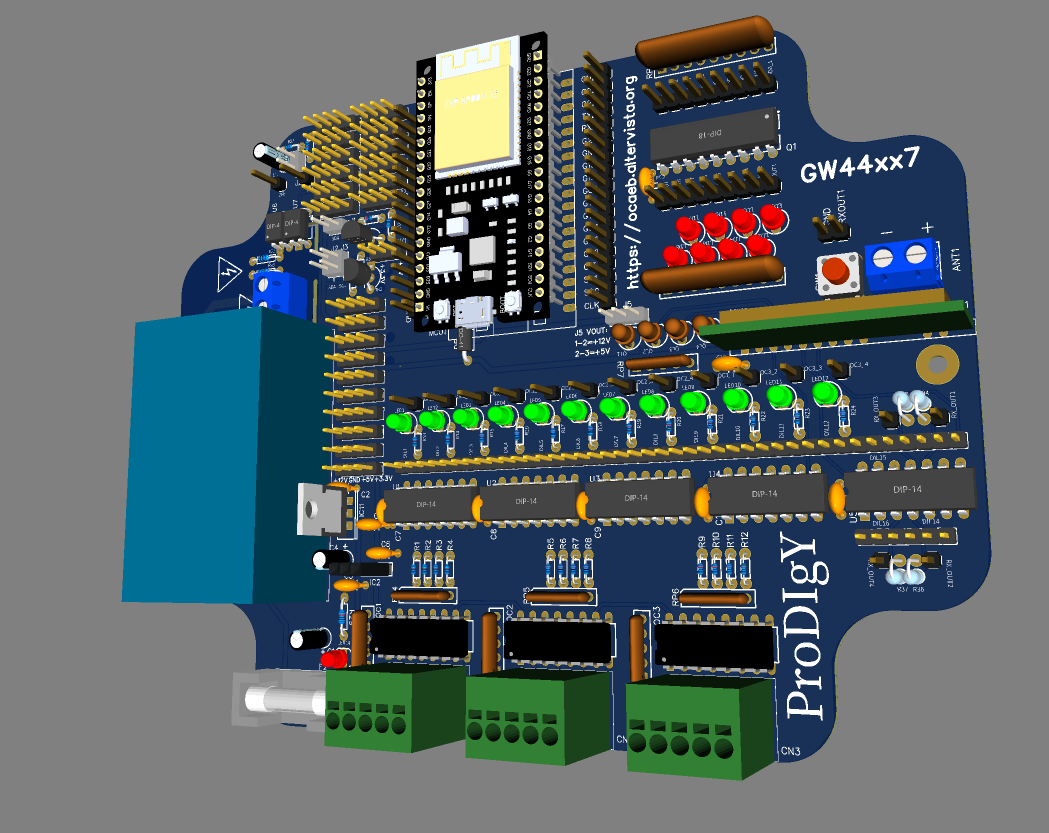

ProDIgY

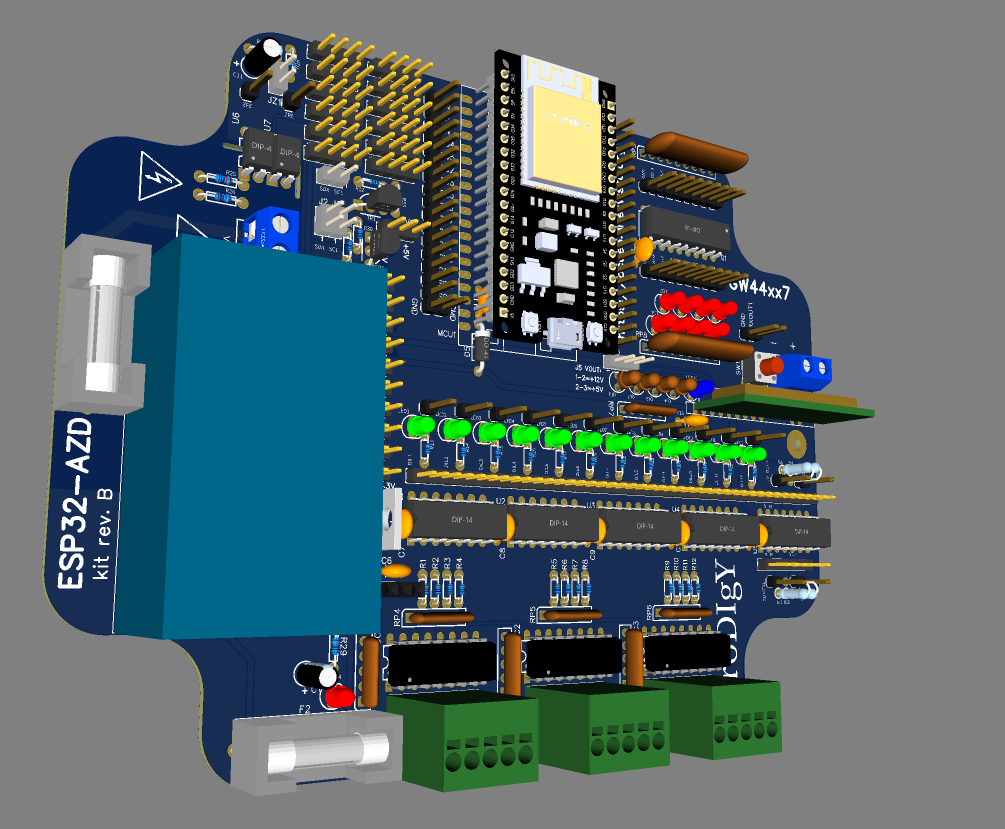

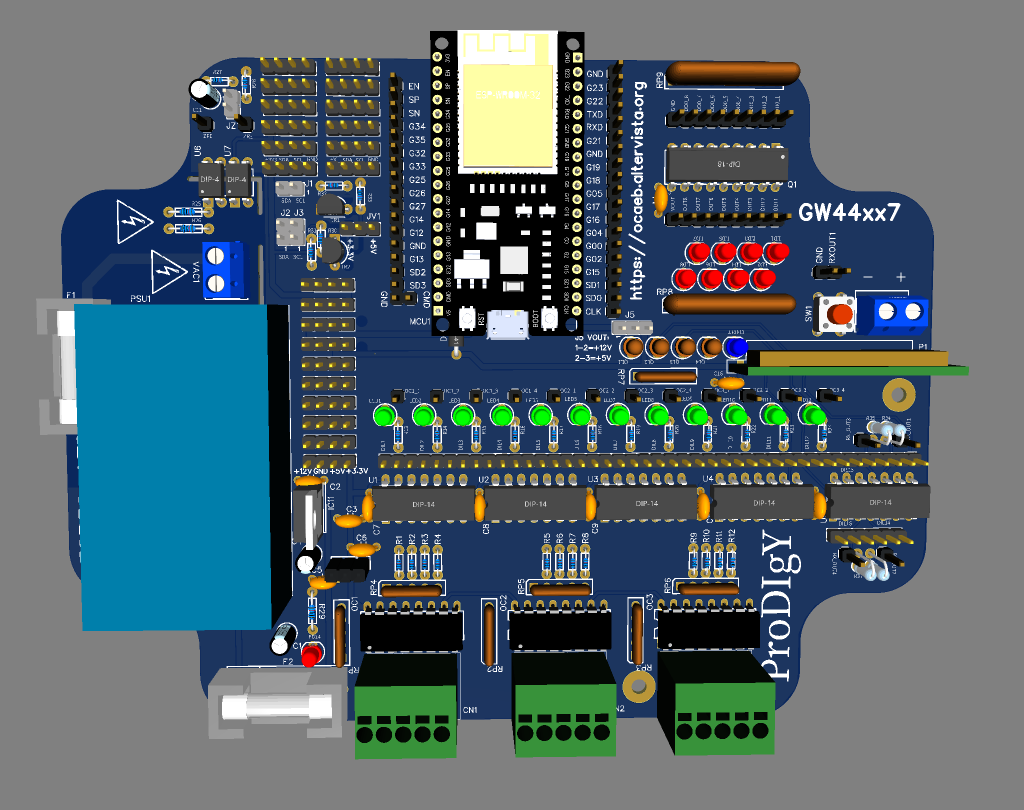

ESP32-AZD W7

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 12Vdc 1.6A (Fused 1.5AF);
  • Digital Inputs: 12xDigInp (Common Ground Signal) Galvanic Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper;
  • Digital Outputs: 8 DigOut with Voltage selection jumper (12V or 5V) driven by MOSFET ULN2804 with LED status;
  • I2C Bus (3V3): 6x 4-Pins connector (3V3, SDA, SCL, GND), 2-Pins connector for SDA in, SCL in;
  • I2C Bus with selectable Voltage Bus: 1x 3-Pins jumper forbus voltage selection (3V3 or 5V), 6x 4-Pins connector (Vsel, SDA, SCL, GND), 2x 2-Pins jumpers to connect SDA and SDL to the previous I2C Bus (3V3) or other pins as your choiche by removing caps;
  • RTC DS3231 for RPi: connected on I2C default bus pins (SCL-G22, SDA-G21) ;
  • Radio Receiver: up to 6-channels radio receiver from Aurel;
  • Auxiliary Voltages Pins: 6x 3V3, 6x 5V, 6x GND;
  • Zero Cross Detection: dual ZC detection circuit, for Rising and Falling Edges (FE may be also used as normal signal using a DIP jumper);
  • Dimensions (cm): 19x14x7;
  • Suitable Box: Gewiss GW44xx7;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

ProDIgY

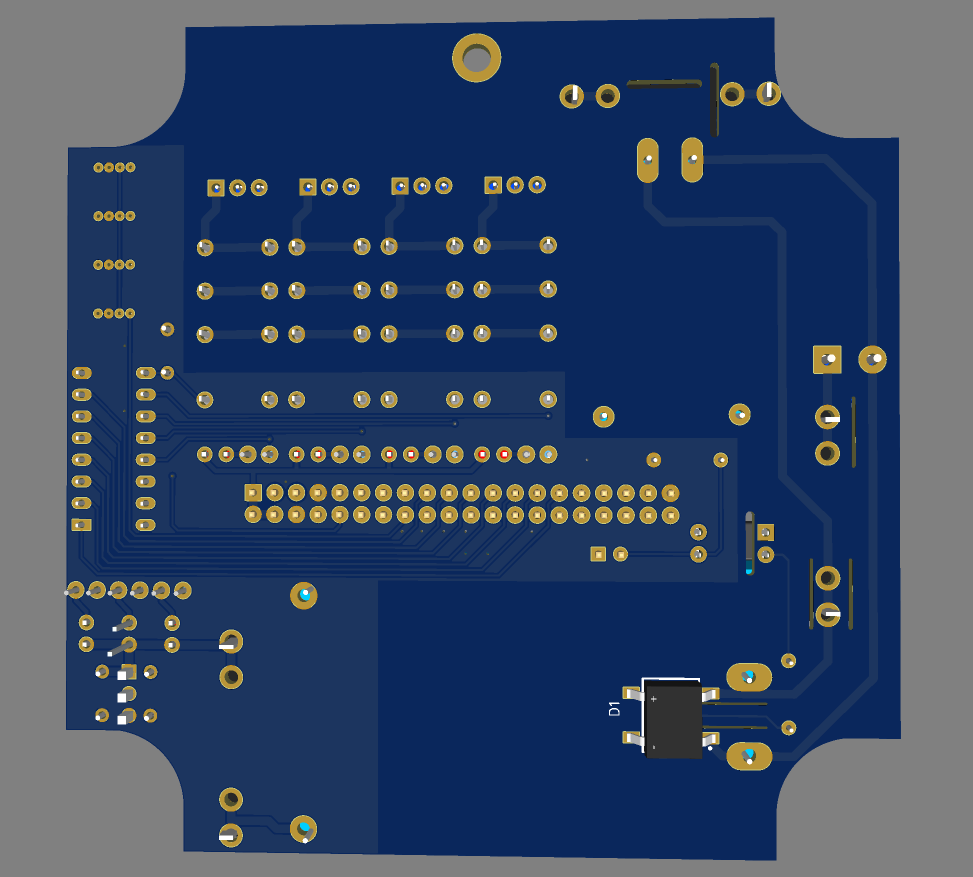

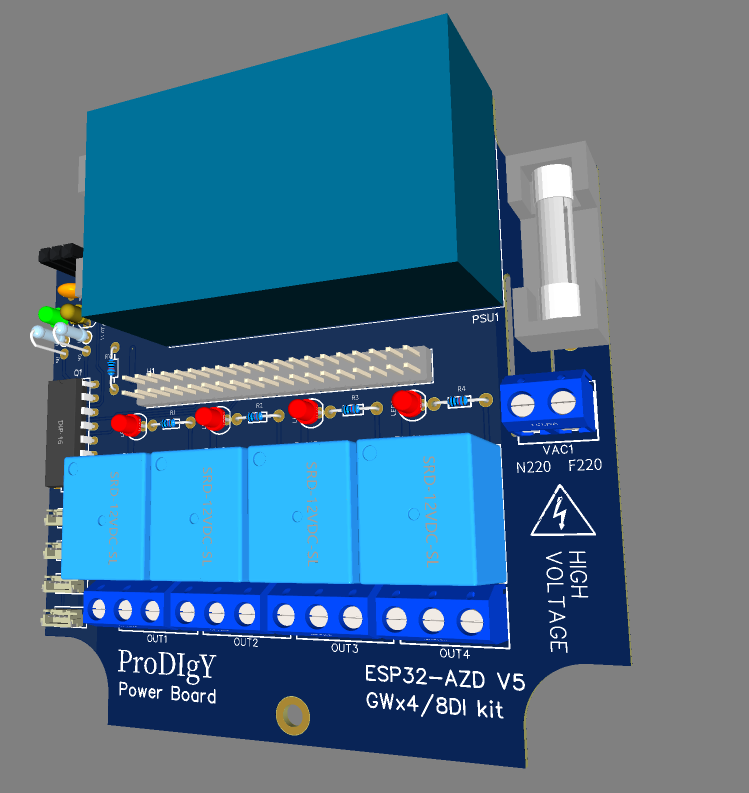

ESP32-AZD W4BB
(Base Board)

Completion for W4TB

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 5Vdc 4A (Fused 3AF);
  • Digital Outputs: 7 DigOut on driven by MOSFET ULN2004 for 4x Relays SRD-5Vdc, 3x LED (Red, Yellow, Green);
  • I2C Bus: 4x JST 1.27 4Poles (3V3, GPIO 22 - SCL, GPIO 21 - SDA, GND);
  • Dimensions (cm): 10x10x5;
  • Suitable Box: Gewiss GW44xx4;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

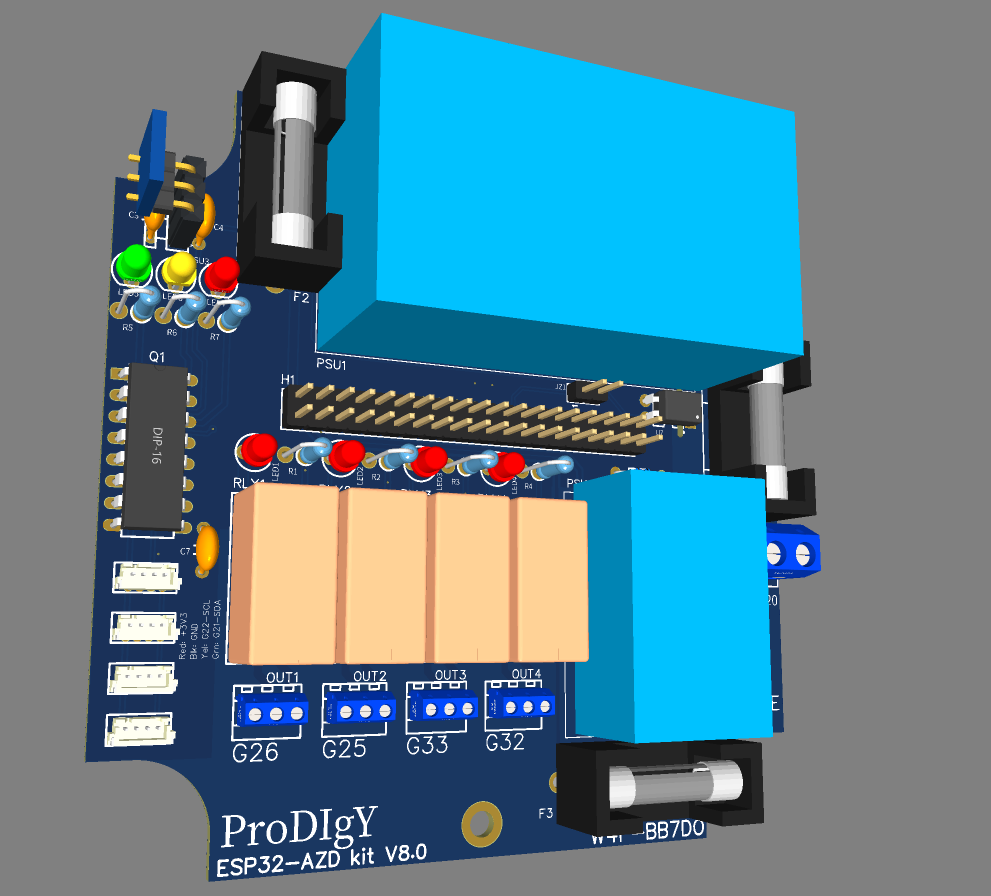

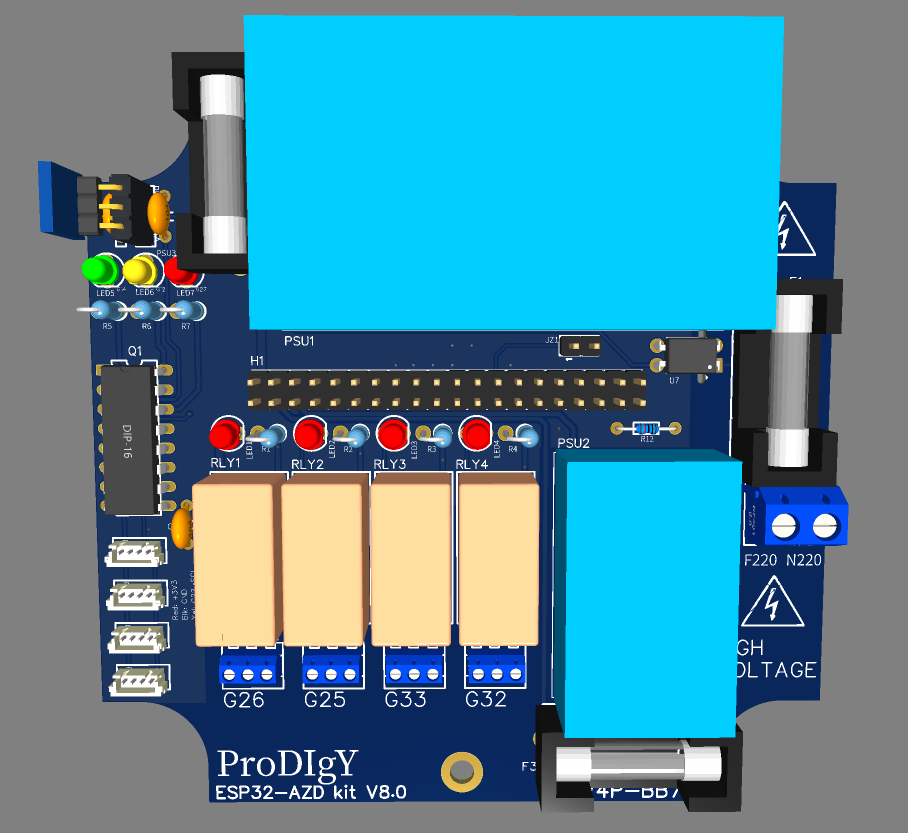

ProDIgY

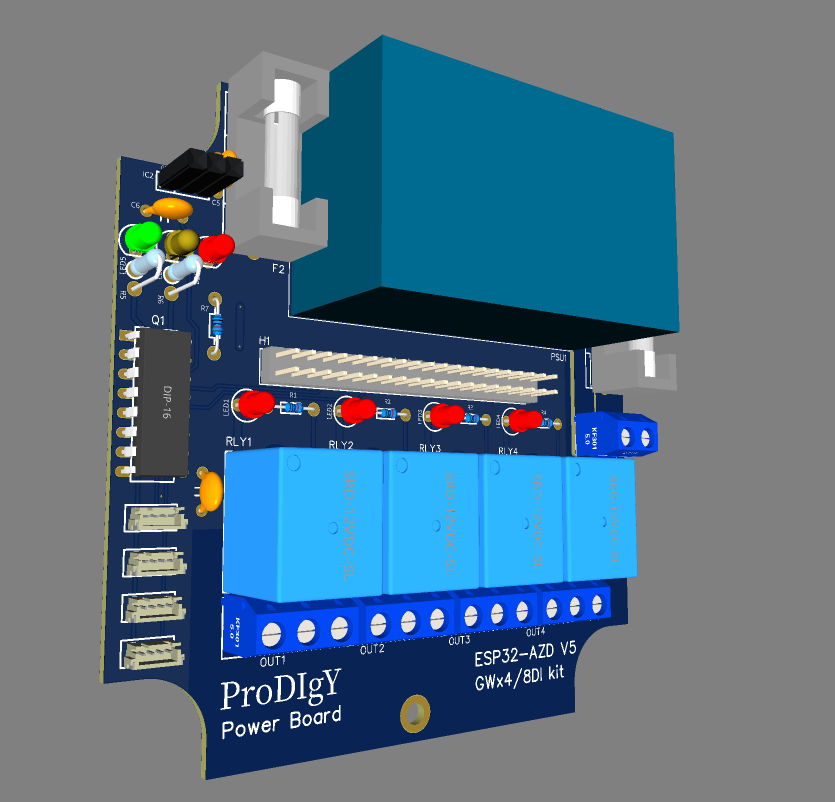

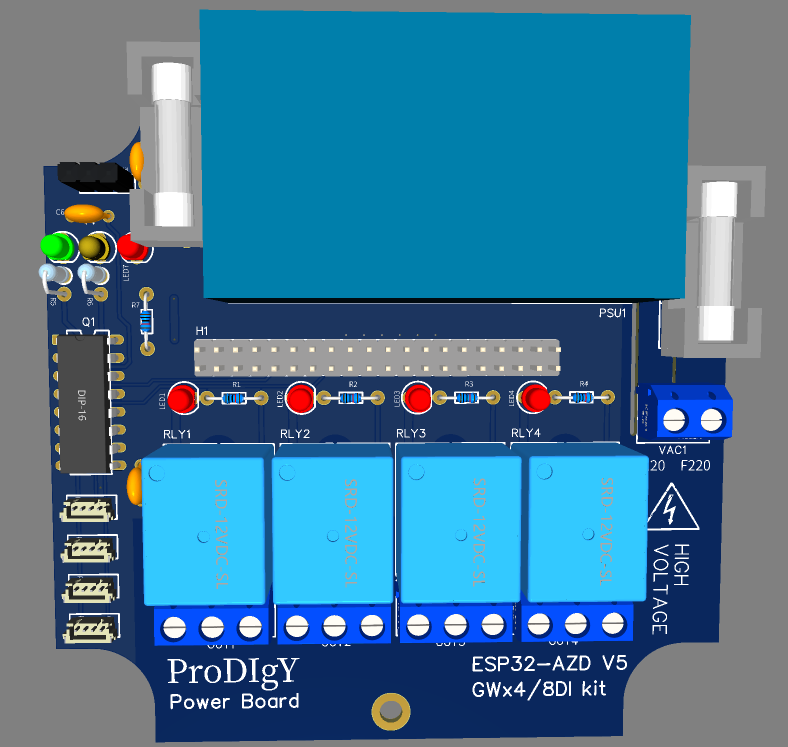

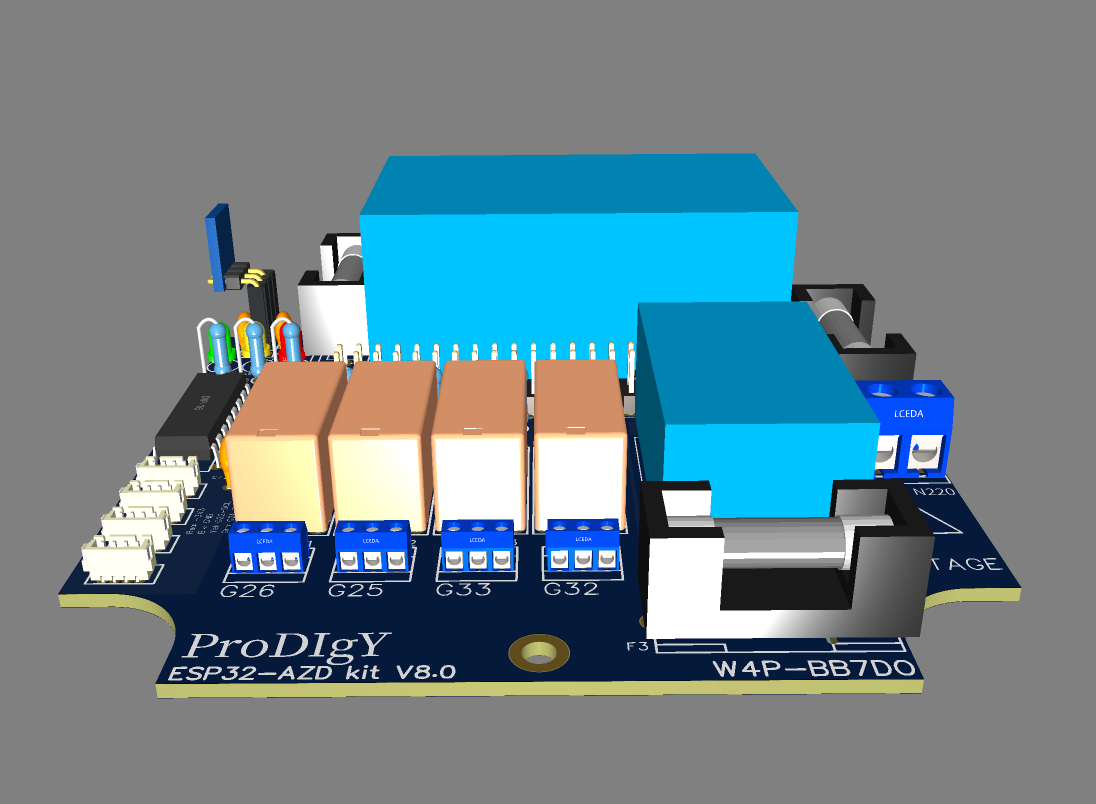

ESP32-AZD W4P-BB7DO
(Base Board)

Completion for W4P-TB8DI

  • Main Power Supply: In 220Vac (Fused 0,8AT) – Out 12Vdc 1,6A (Fused 1.2AF);
  • Aux Power Galvanic Isolated 12Vdc/0,8A for Inputs and External Devices to Top Board;
  • 1x PIN for Zero-Cross Detection OptoIsolated;
  • Digital Outputs: 7 DigOut driven by MOSFET ULN2004 for 4x Relays HK19F-12Vdc, 3x LED (Red, Yellow, Green);
  • I2C Bus: 4x JST 1.27 4Poles (3V3, GPIO 22 - SCL, GPIO 21 - SDA, GND);
  • Dimensions (cm): 10x10x5;
  • Suitable Box: Gewiss GW44xx4;
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante
  • Titolo diapositiva

    Scrivi qui la tua didascalia
    Pulsante

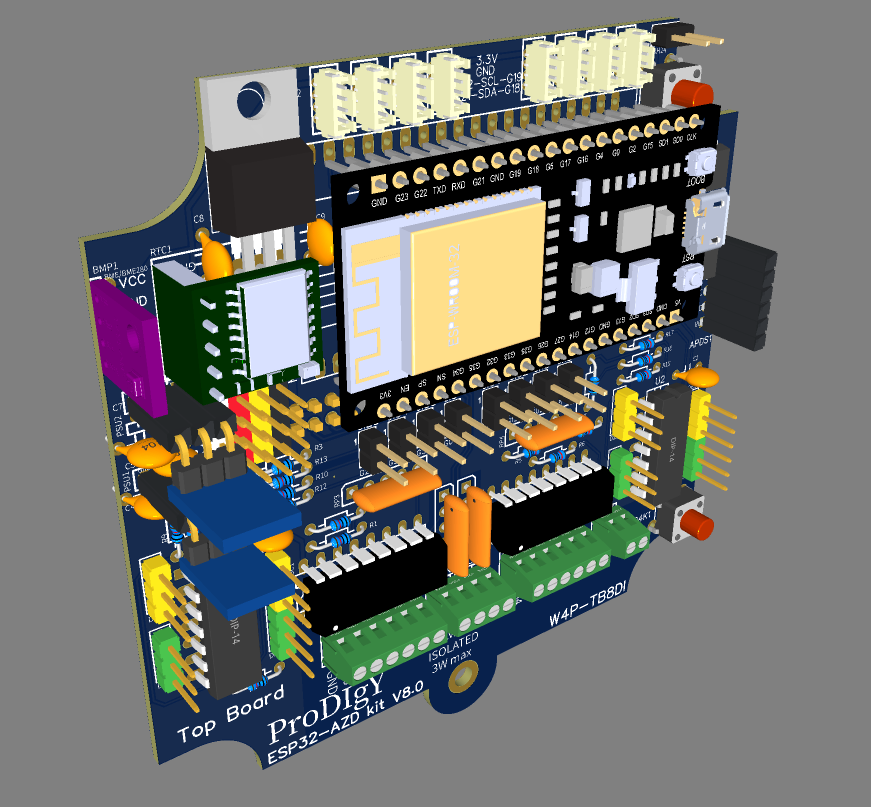

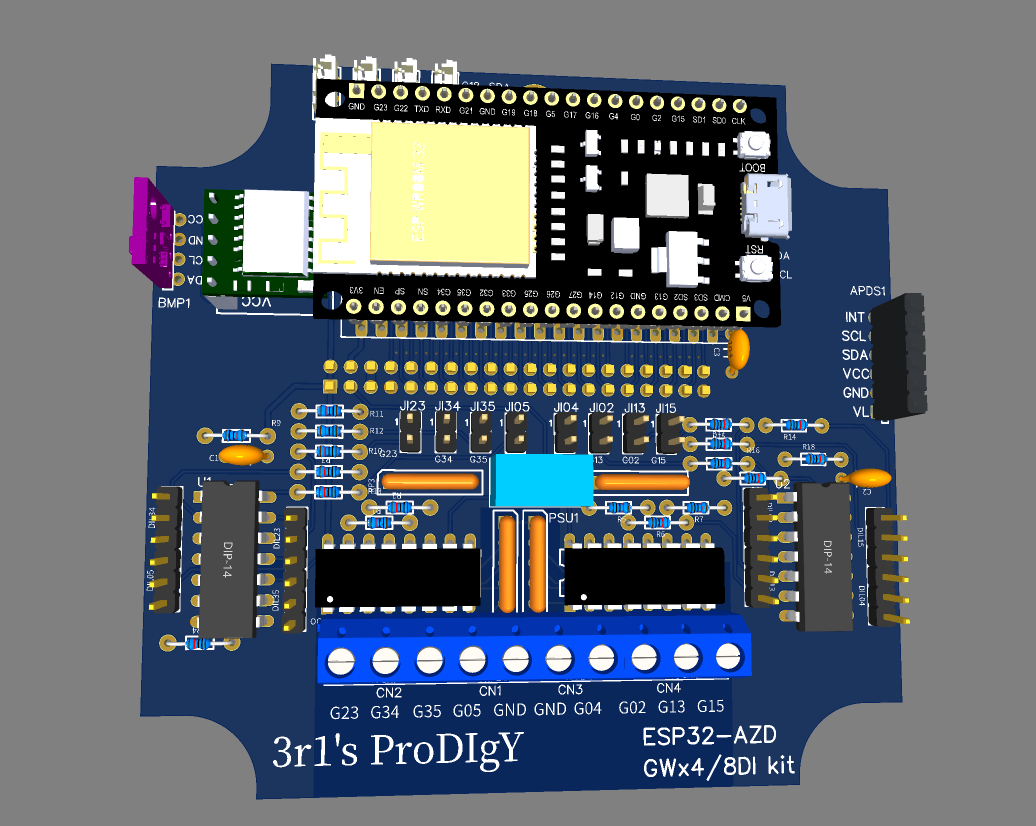

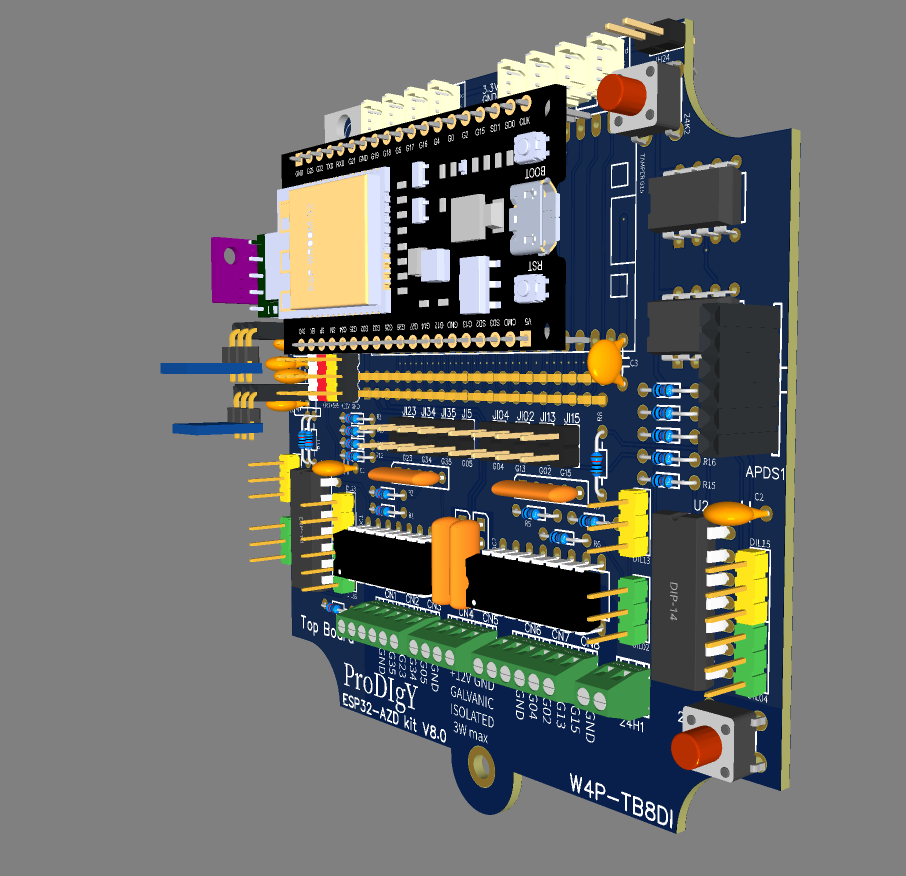

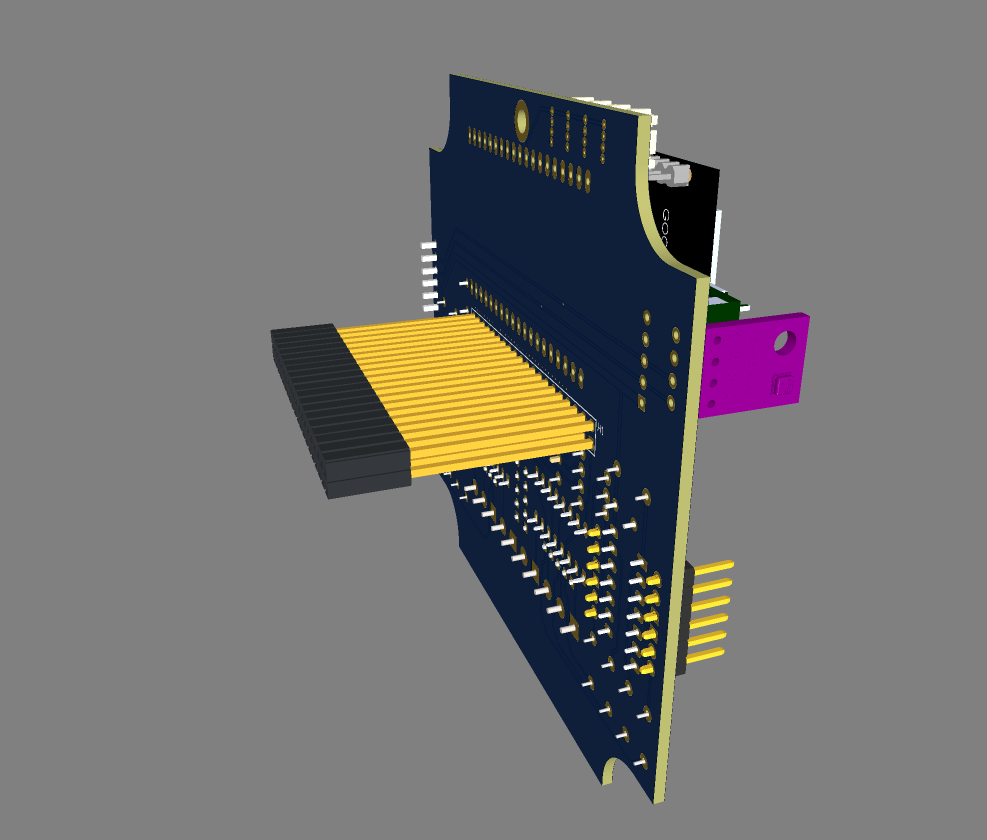

ProDIgY

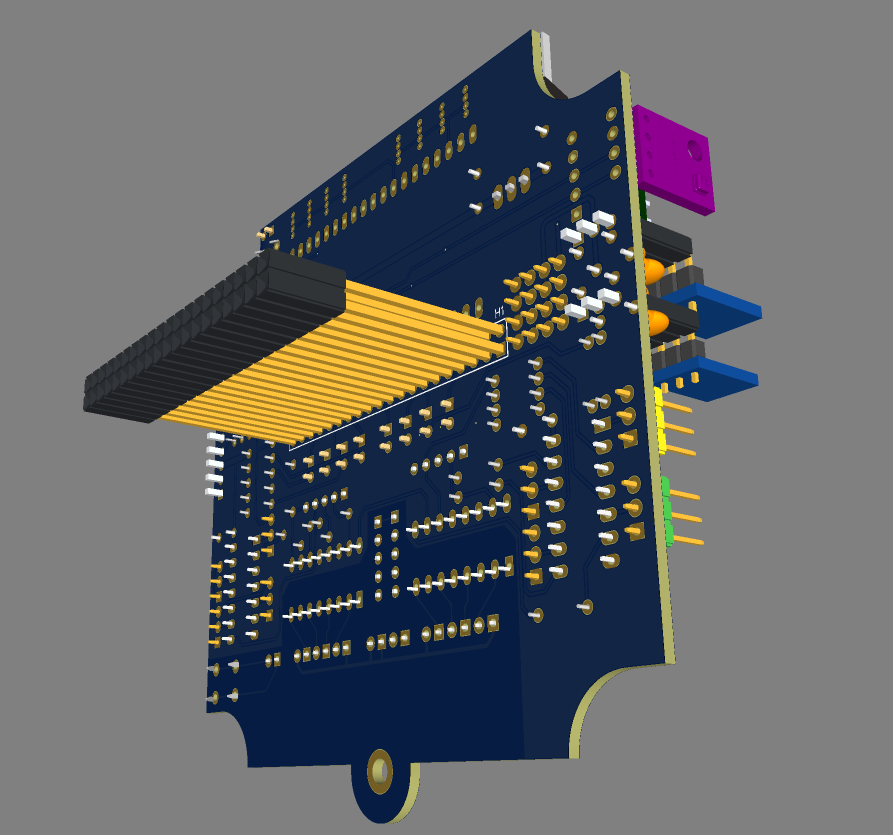

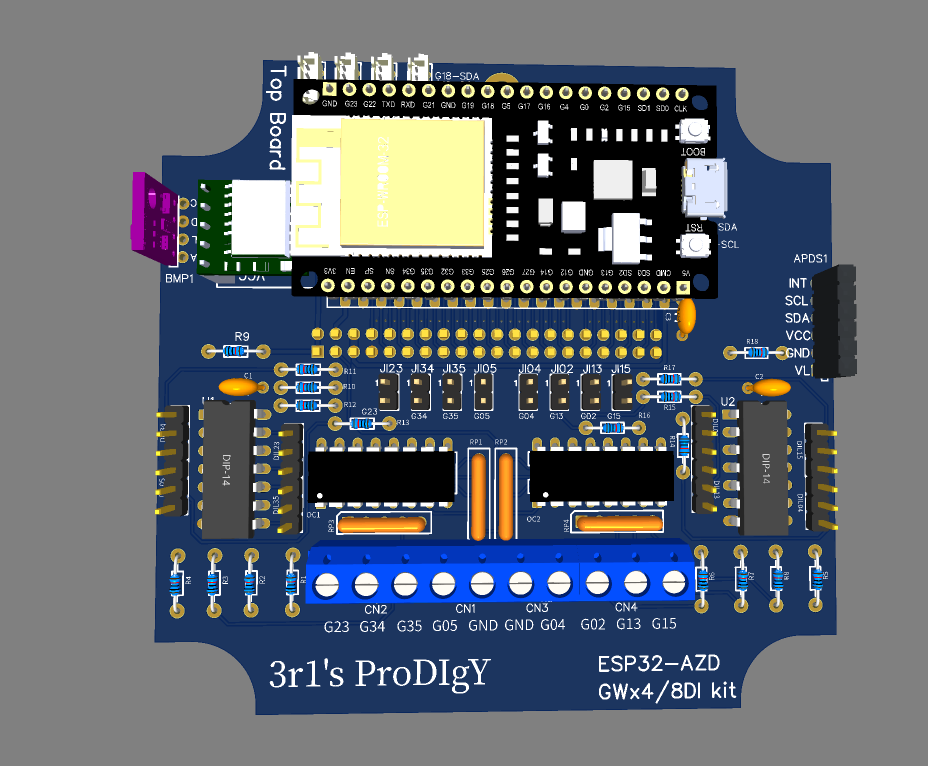

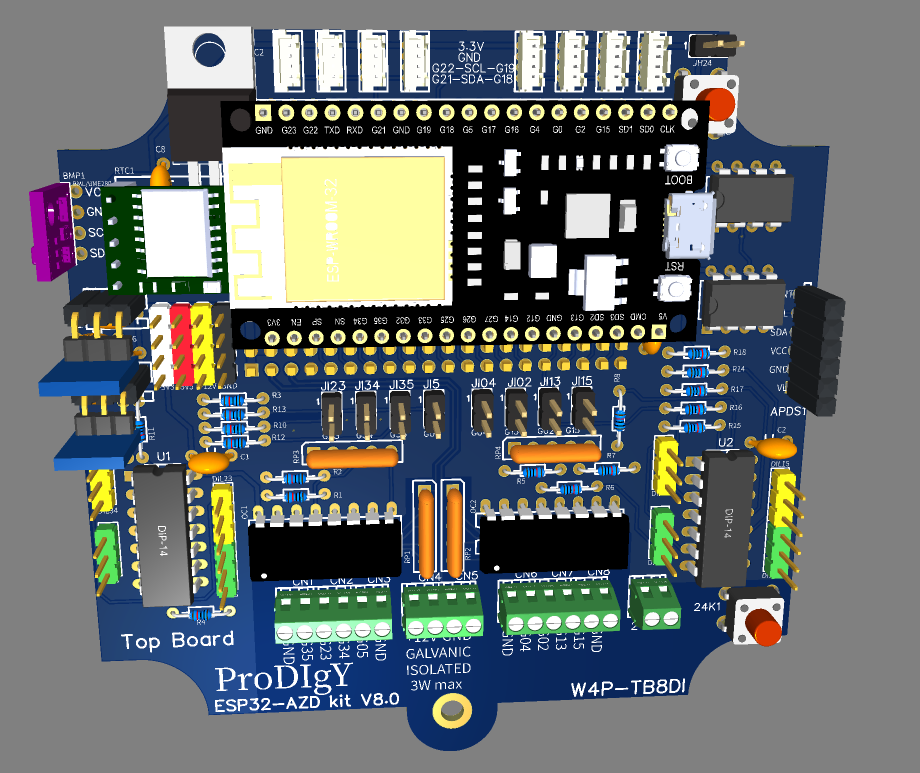

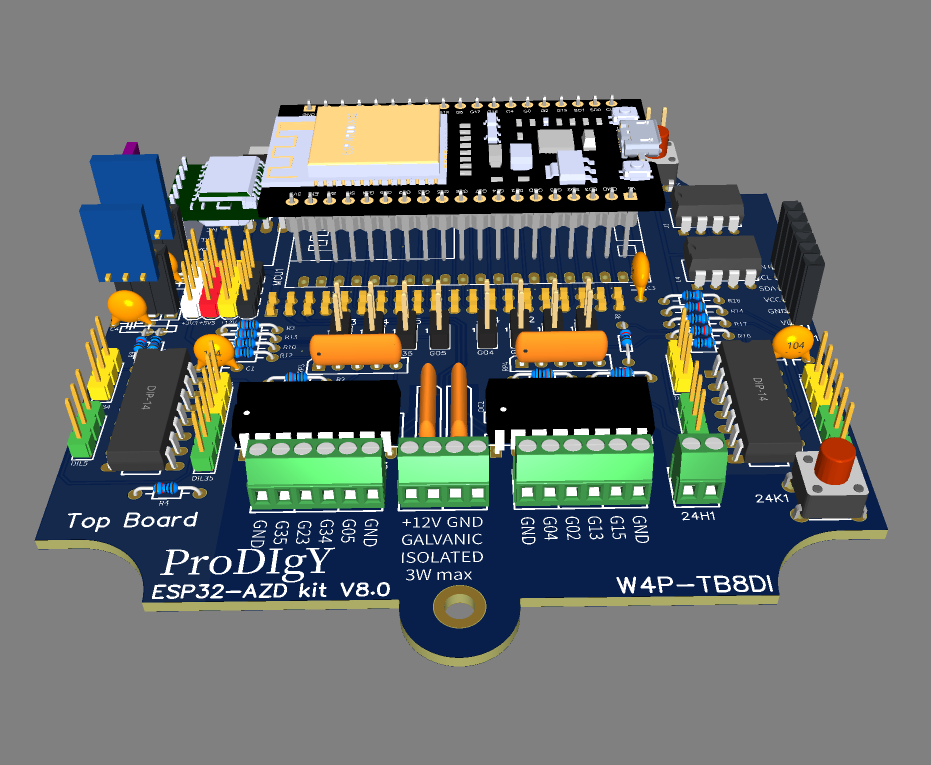

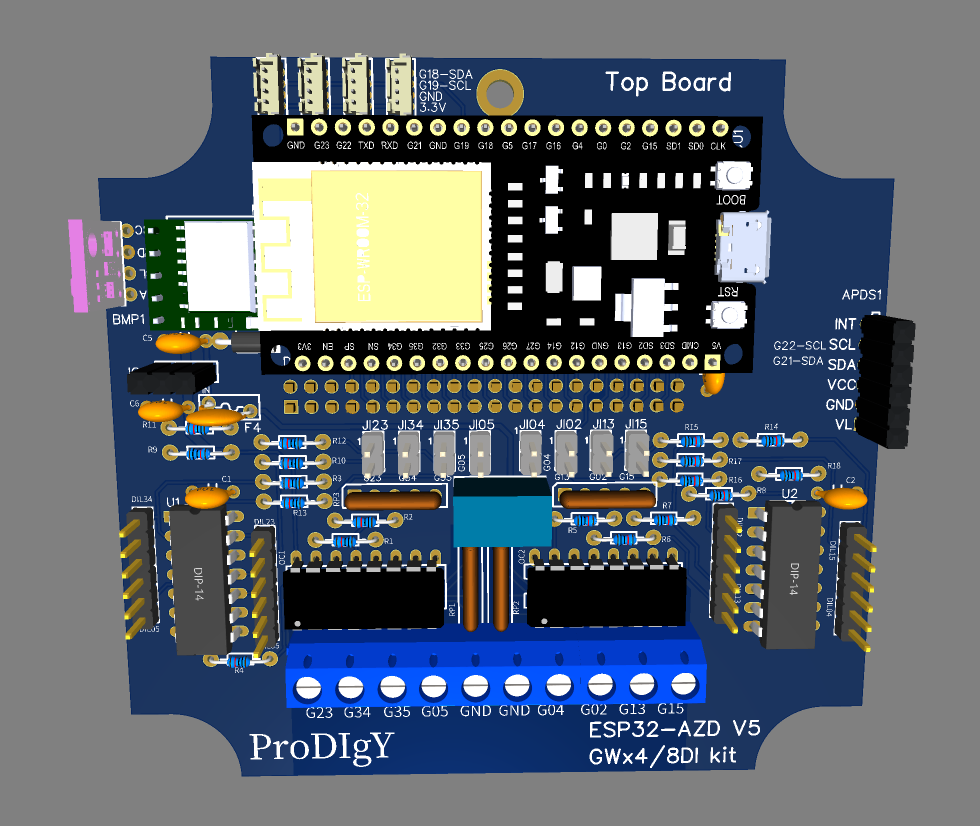

ESP32-AZD W4P-TB8DI
(Top Board)

Completion for W4BB

  • Main Power Supply: In 12Vdc from Base Board;
  • Inputs Power Supply Galvanic Isolated: 2Vdc/0,8A;
  • Digital Inputs: 8 DigInp (Common Ground Signal) Galvanic Opto-Isolated and Schmitt Triggered, selectable Logic Inversion by DIP Jumper, GPIO connection to Input Channels by DIP Jumpers;
  • I2C Bus: 4x JST 1.27 4Poles (3V3, GPIO 22 - SCL, GPIO 21- SDA, GND) + 4x JST 1.27 4Poles (3V3, GPIO 19 - SCL, GPIO 18 - SDA, GND);;
  • 1x Slot for DS3231 for RPi RTC (Real Time Clock) on GPIO 22 - SCL, GPIO 21- SDA;
  • 1x Slot APDS.9960 Light/Gesture Sensor on GPIO 22 - SCL, GPIO 21- SDA;
  • 2x2x 24LC512 EEPROM socket on I2C Bus0;
  • 4x Pins 0Vdc, 4x Pins +3.3Vdc, 4x Pins 12Vdc, 4x Pins 5.5Vdc for Auxiliary Internal Devices;
  • 1x Slot BME280 Temperature/Humidity/Pressure Sensor on GPIO 22 - SCL, GPIO 21- SDA;
  • 1x Key Button N.O. for External Tamper Circuit;
  • 1x Key Button N.O. for Internal Tamper with Jumper selector on G15;
  • Dimensions (cm): 10x10x5;;
  • Suitable Box: Gewiss GW44xx4;;
